. 1m Water B A 250 kg 4m-wide rectangular gate shown in the figure on the left is hinged at B and stays vertical with th

Post by answerhappygod »

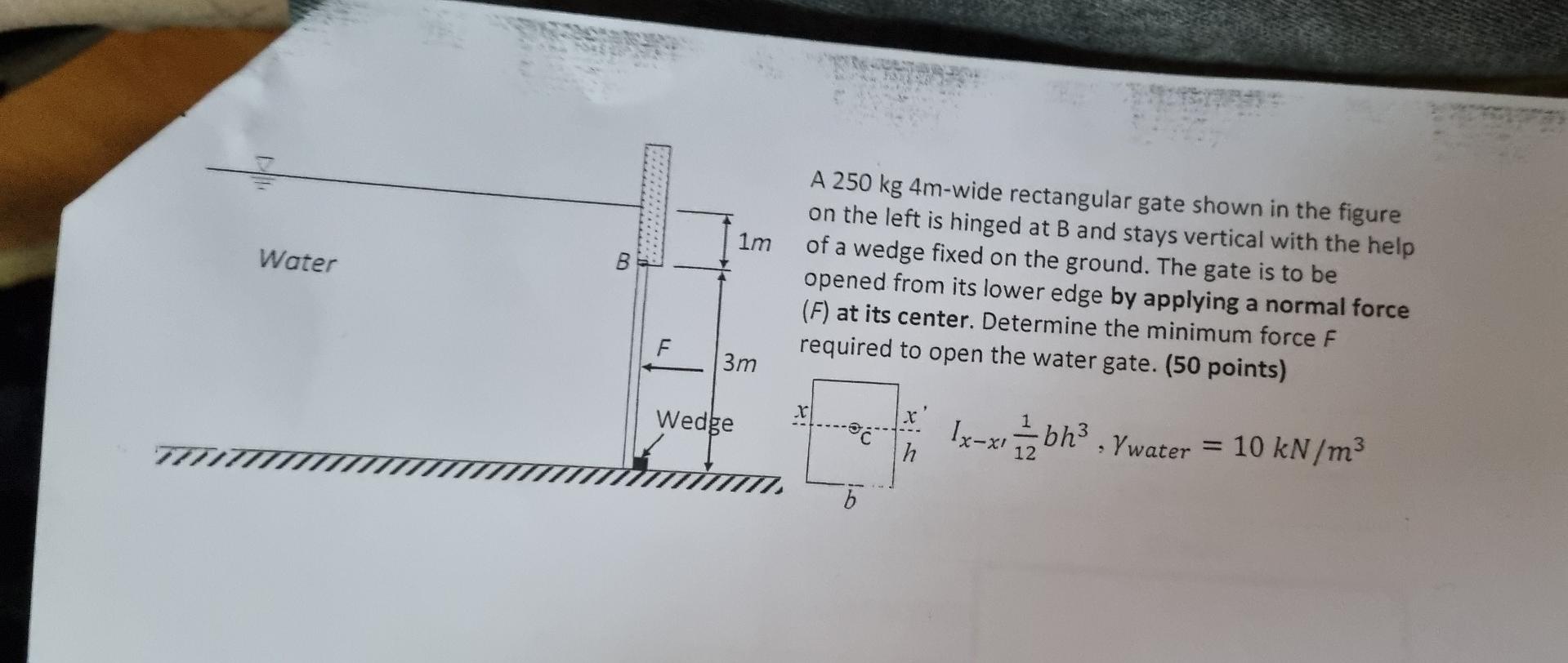

1m Water B A 250 Kg 4m Wide Rectangular Gate Shown In The Figure On The Left Is Hinged At B And Stays Vertical With Th 1
1m Water B A 250 Kg 4m Wide Rectangular Gate Shown In The Figure On The Left Is Hinged At B And Stays Vertical With Th 1 (113.85 KiB) Viewed 27 times
. 1m Water B A 250 kg 4m-wide rectangular gate shown in the figure on the left is hinged at B and stays vertical with the help of a wedge fixed on the ground. The gate is to be opened from its lower edge by applying a normal force (F) at its center. Determine the minimum force F required to open the water gate. (50 points) 3m Wedge r Ix-xvbh3, Ywater = 10 kN/m3 777 h 12 b
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
