Problem 1. An eccentrically compressed column is of rectangular section. The dimensions of the column are b * h = 500 mm

[answerhappygod]

Problem 1 An Eccentrically Compressed Column Is Of Rectangular Section The Dimensions Of The Column Are B H 500 Mm 1 (18.45 KiB) Viewed 30 times

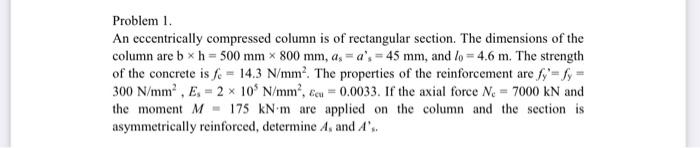

Problem 1. An eccentrically compressed column is of rectangular section. The dimensions of the column are b * h = 500 mm x 800 mm, as=a's - 45 mm, and lo = 4.6 m. The strength of the concrete is fe - 14.3 N/mm². The properties of the reinforcement are fy=14= 300 N/mmº. Es = 2 x 10 N/mm², Ecu = 0.0033. If the axial force Ne = 7000 kN and the moment M - 175 kNm are applied on the column and the section is asymmetrically reinforced, determine A, and A'..
