- How Many Liters Per Second Of Water Must The Pump Shown Supply When The Flow Needed In The 915 Mm Diameter Pipe Is 1 314 1 (99.78 KiB) Viewed 34 times
Please give me a detailed explanation on what direction the water flows in the given system.

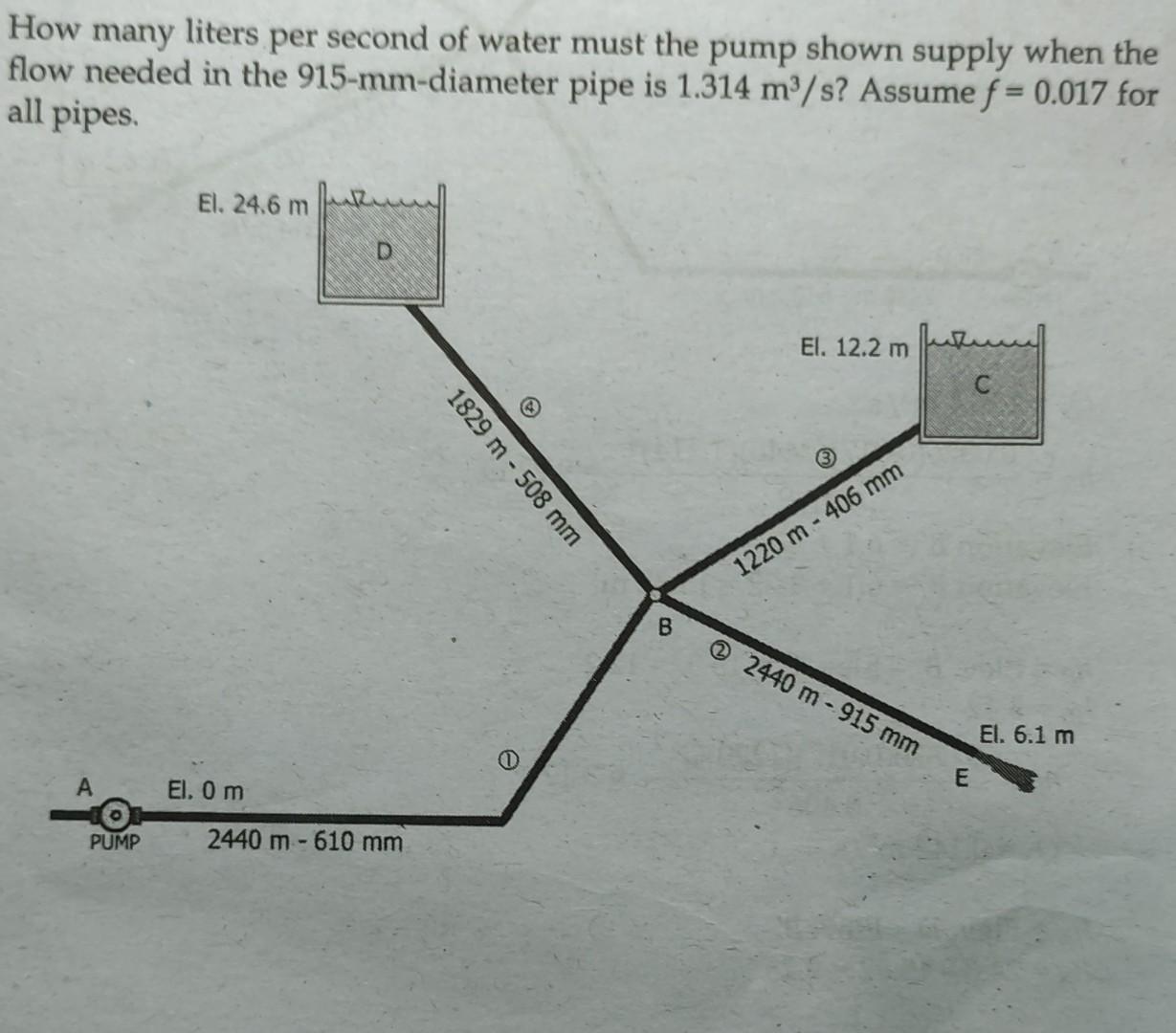

How many liters per second of water must the pump shown supply when the flow needed in the 915-mm-diameter pipe is 1.314 m/s? Assume f = 0.017 for all pipes. El. 24.6 m D El. 12.2 m С > 1829 m - 508 mm 1220 m- - 406 mm B © 2440 m - 915 mm El. 6.1 m 0 עו E A El. Om PUMP 2440 m - 610 mm
