For this truss, virtual work is applied to calculate deflection at C. The value of NnL for member CG only is: (assume CG

Post by answerhappygod »

For This Truss Virtual Work Is Applied To Calculate Deflection At C The Value Of Nnl For Member Cg Only Is Assume Cg 1
For This Truss Virtual Work Is Applied To Calculate Deflection At C The Value Of Nnl For Member Cg Only Is Assume Cg 1 (18.88 KiB) Viewed 24 times
I need full solution please

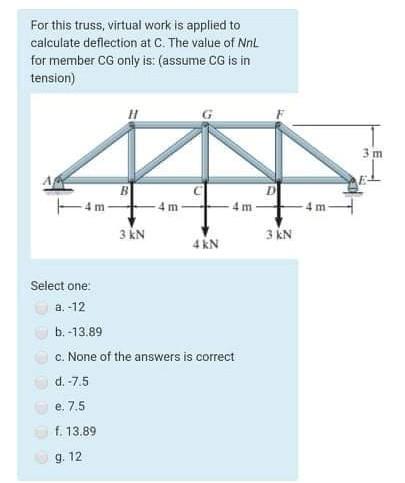

For this truss, virtual work is applied to calculate deflection at C. The value of NnL for member CG only is: (assume CG is in tension) 3 m D -4 m 4 m 4 m 4 m 3 kN 3 KN 4KN Select one a.-12 b.-13.89 c. None of the answers is correct d. -7.5 e. 7.5 f. 13.89 9.12
