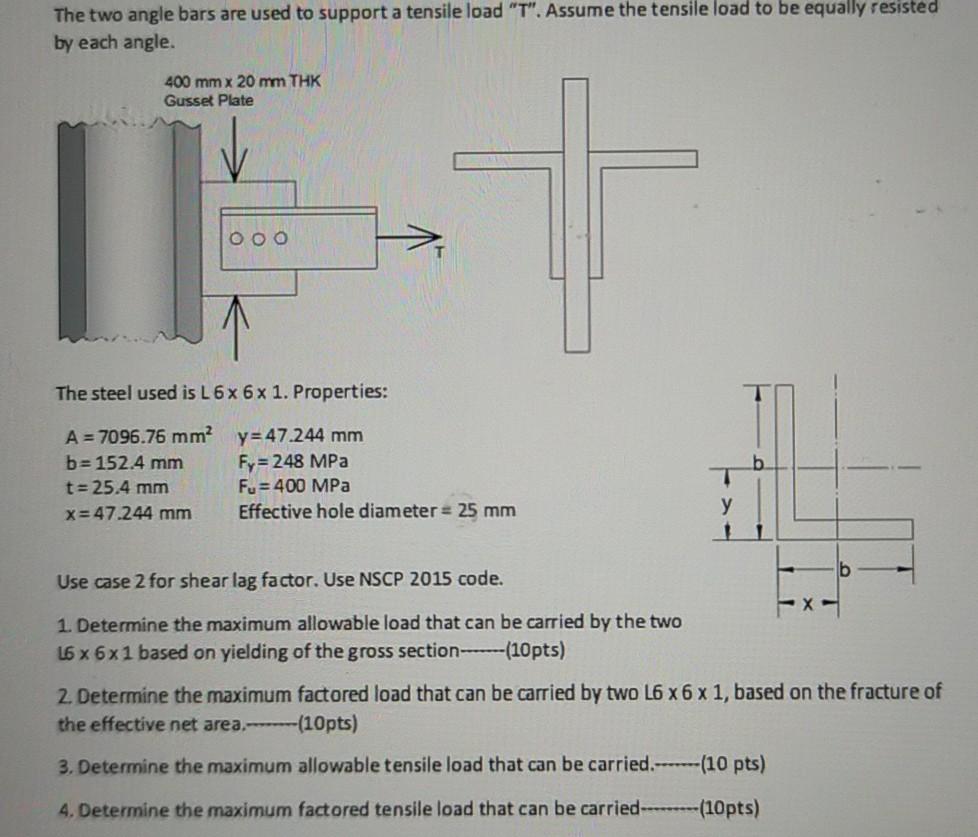

- The Two Angle Bars Are Used To Support A Tensile Load T Assume The Tensile Load To Be Equally Resisted By Each Angle 1 (81.48 KiB) Viewed 46 times
The two angle bars are used to support a tensile load "T". Assume the tensile load to be equally resisted by each angle. 400 mm x 20 mm THK Gusset Plate ООО The steel used is L 6 x 6 x 1. Properties: A = 7096.76 mm? b= 152.4 mm t= 25,4 mm x=47.244 mm y=47.244 mm Fy = 248 MPa Fu = 400 MPa Effective hole diameter = 25 mm у b Use case 2 for shear lag factor. Use NSCP 2015 code. EX 1. Determine the maximum allowable load that can be carried by the two 16 x 6x1 based on yielding of the gross section-----(10pts) 2. Determine the maximum factored load that can be carried by two L6 x 6 x 1, based on the fracture of the effective net area. (10pts) 3. Determine the maximum allowable tensile load that can be carried.------(10 pts) 4. Determine the maximum factored tensile load that can be carried --------(10pts)
