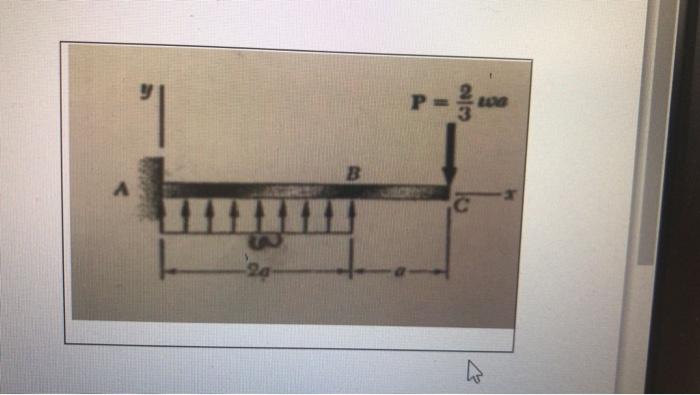

6) For the cantilever beam and loading shown, determine (a) the equation of the elastic curve portion AB of the beam, (b) the deflection at B. (c) slope at B.
P = Al๖ A C -20
