Example 1 For The Cross Section Of A Cantilever Retaining Wall Shown In The Figure Below Calculate The Safety Factors W 1 (55.68 KiB) Viewed 27 times
Resolve example no. 1 (in details) considering that the thickness of footing is 0.5m
instead of 0.7m. Your solution should include the retaining wall section, its dimensions,
and soil properties.

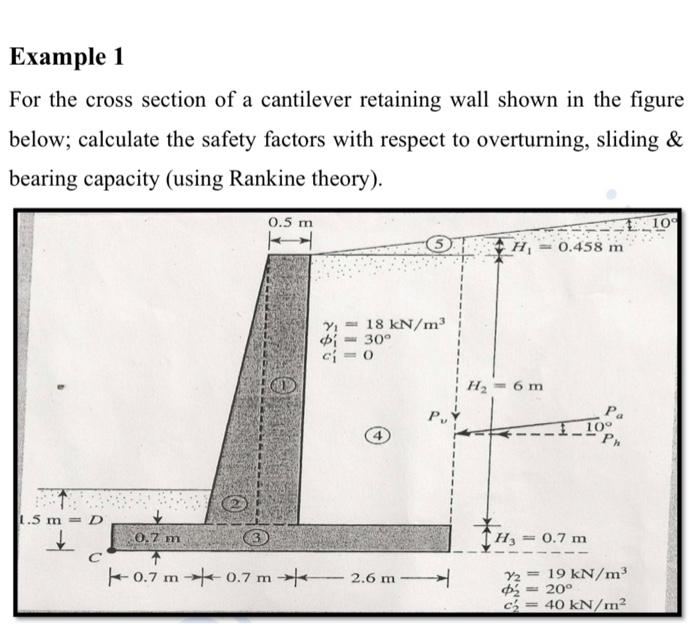

Example 1 For the cross section of a cantilever retaining wall shown in the figure below; calculate the safety factors with respect to overturning, sliding & bearing capacity (using Rankine theory). 0.5 m 2.454109 H =0.458 m 18 kN/m 30° 0 H = 6 m Ра 10 1.5 m D t ות 0.7 $1,- H = 0.7 m с -0.7 mt-0.7 m 2.6 m 버 φ, ch 19 kN/m 20° 40 kN/m2
