Question 7 a) A 9 mm diameter steel cable is subjected to a tensile load. The extension on 20 m of cable due to the load

Post by answerhappygod »

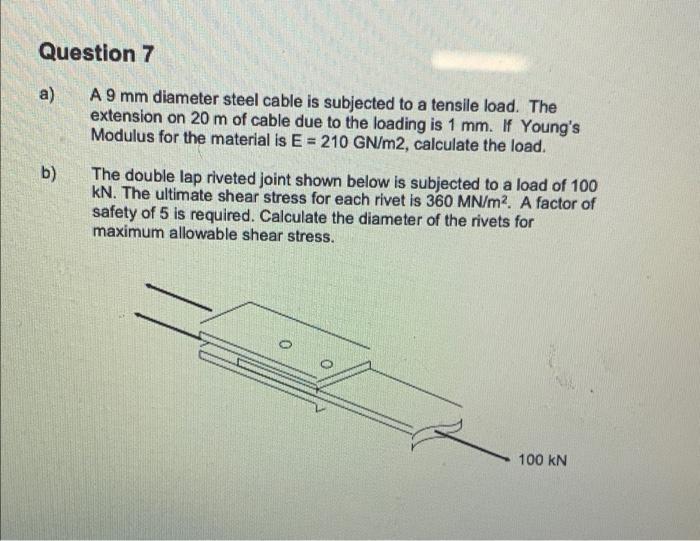

Question 7 A A 9 Mm Diameter Steel Cable Is Subjected To A Tensile Load The Extension On 20 M Of Cable Due To The Load 1
Question 7 A A 9 Mm Diameter Steel Cable Is Subjected To A Tensile Load The Extension On 20 M Of Cable Due To The Load 1 (62.22 KiB) Viewed 24 times
Question 7 a) A 9 mm diameter steel cable is subjected to a tensile load. The extension on 20 m of cable due to the loading is 1 mm. If Young's Modulus for the material is E = 210 GN/m2, calculate the load. b) The double lap riveted joint shown below is subjected to a load of 100 KN. The ultimate shear stress for each rivet is 360 MN/m2. A factor of safety of 5 is required. Calculate the diameter of the rivets for maximum allowable shear stress. 100 KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
