Problem 2 A tension plate shown below is used to support suspended load "T". Gusset Plate Fy = 248 MPa Fu = 400 MPa 200

Post by answerhappygod »

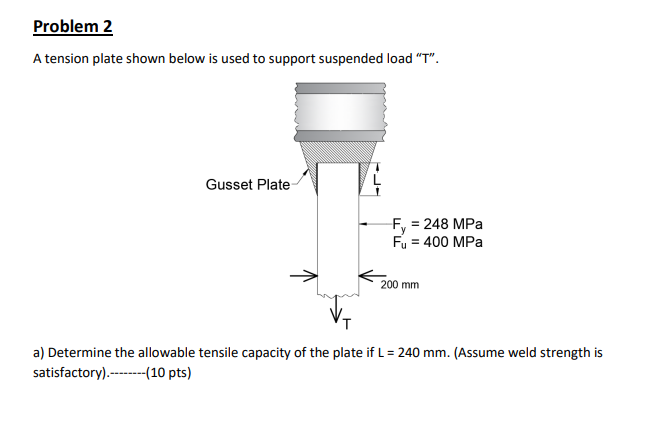

Problem 2 A Tension Plate Shown Below Is Used To Support Suspended Load T Gusset Plate Fy 248 Mpa Fu 400 Mpa 200 1
Problem 2 A Tension Plate Shown Below Is Used To Support Suspended Load T Gusset Plate Fy 248 Mpa Fu 400 Mpa 200 1 (37.57 KiB) Viewed 19 times
Problem 2 A tension plate shown below is used to support suspended load "T". Gusset Plate Fy = 248 MPa Fu = 400 MPa 200 mm a) Determine the allowable tensile capacity of the plate if L = 240 mm. (Assume weld strength is satisfactory).--------(10 pts)
