Problem 1 A plate is used as a tension member, to carry a deadload = 300 KN and live load of 260 KN. Steel used is A36,

Post by answerhappygod »

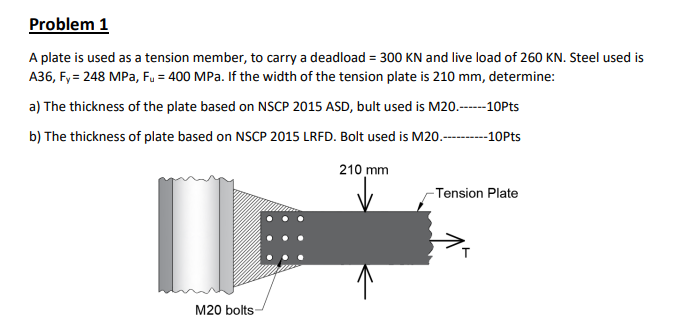

Problem 1 A Plate Is Used As A Tension Member To Carry A Deadload 300 Kn And Live Load Of 260 Kn Steel Used Is A36 1
Problem 1 A Plate Is Used As A Tension Member To Carry A Deadload 300 Kn And Live Load Of 260 Kn Steel Used Is A36 1 (53.37 KiB) Viewed 19 times
Problem 1 A plate is used as a tension member, to carry a deadload = 300 KN and live load of 260 KN. Steel used is A36, Fy= 248 MPa, Fu = 400 MPa. If the width of the tension plate is 210 mm, determine: a) The thickness of the plate based on NSCP 2015 ASD, bult used is M20.------10Pts b) The thickness of plate based on NSCP 2015 LRFD. Bolt used is M20.----------10Pts 210 mm - Tension Plate M20 bolts
