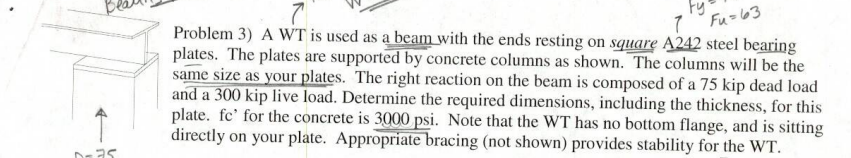

7 Fu=63 Fy Problem 3) A WT is used as a beam with the ends resting on square A242 steel bearing plates. The plates are supported by concrete columns as shown. The columns will be the same size as your plates. The right reaction on the beam is composed of a 75 kip dead load and a 300 kip live load. Determine the required dimensions, including the thickness, for this plate. fe' for the concrete is 3000 psi. Note that the WT has no bottom flange, and is sitting directly on your plate. Appropriate bracing (not shown) provides stability for the WT. 4 Das
