Answer the following

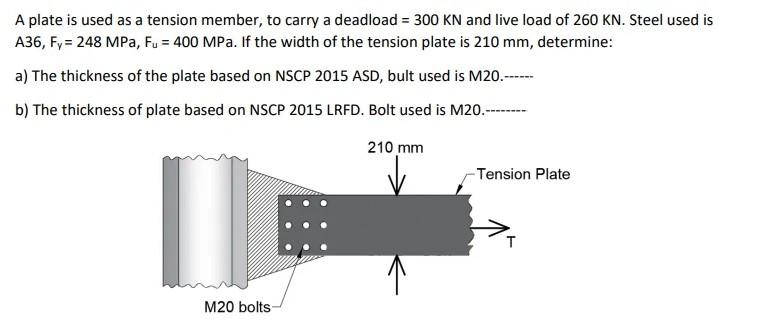

A plate is used as a tension member, to carry a deadload = 300 KN and live load of 260 KN. Steel used is A36, Fr= 248 MPa, Fu = 400 MPa. If the width of the tension plate is 210 mm, determine: a) The thickness of the plate based on NSCP 2015 ASD, bult used is M20.-- b) The thickness of plate based on NSCP 2015 LRFD. Bolt used is M20.--- 210 mm -Tension Plate T M20 bolts
