What is the Maximum Moment in KN-m. Please include the Shear and Moment Diagram, The maximum shear and the location of Z

Post by answerhappygod »

What is the Maximum Moment in KN-m.

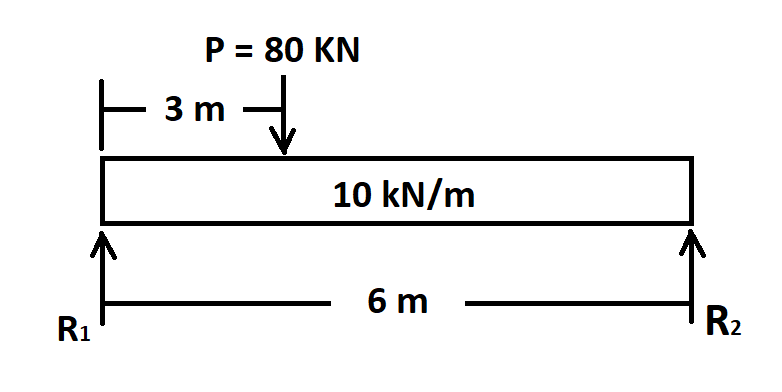

What Is The Maximum Moment In Kn M Please Include The Shear And Moment Diagram The Maximum Shear And The Location Of Z 1
What Is The Maximum Moment In Kn M Please Include The Shear And Moment Diagram The Maximum Shear And The Location Of Z 1 (9.43 KiB) Viewed 15 times
Please include the Shear and Moment Diagram, The maximum shear
and the location of Zero shear/maximum moment.
P = 80 KN = 3 m 3m 10 kN/m 6 m R1 R2
