= 6.6 An eccentrically compressed column is of rectangular section. The dimen- sions of the column are b x h = 500 mm x

[answerhappygod]

6 6 An Eccentrically Compressed Column Is Of Rectangular Section The Dimen Sions Of The Column Are B X H 500 Mm X 1 (100.09 KiB) Viewed 17 times

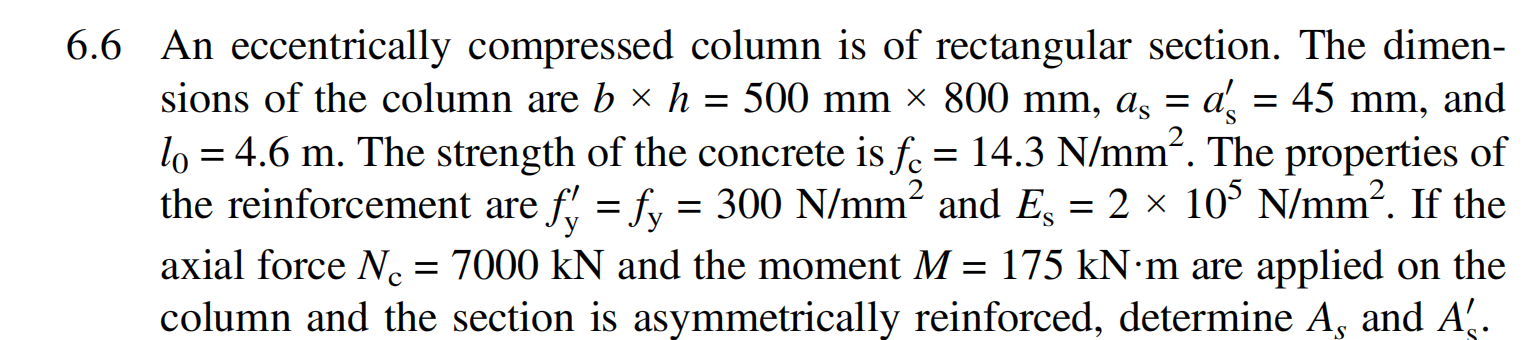

= 6.6 An eccentrically compressed column is of rectangular section. The dimen- sions of the column are b x h = 500 mm x 800 mm, as = a's = 45 mm, and lo = 4.6 m. The strength of the concrete is fe = 14.3 N/mm². The properties of the reinforcement are fy = fy = 300 N/mm² and E. = 2 10 N/mm². If the % axial force N. = 7000 kN and the moment M = 175 kN·m are applied on the column and the section is asymmetrically reinforced, determine A, and A. = = S
