Calculate the values for a retaining wall with relief shelves
given the following drawings and conditions.
a. Find the total quantity of concrete needed for a 1m
retaining wall. (round to the 4 decimal
places.)
b. Find the total amount of formwork /mold needed for a 1m
retaining wall. (round to the 4 decimal
places.)
c. Complete the following rebar quantity table to
calculate the rebar quantity for a 1m retaining wall.
(round the number to the 3 decimal places.)
Conditions:
Name
Diameter
Length (mm)
Quantity
Total Length (mm)
Name
Diameter
Length (mm)
Quantity
Total Length (mm)
W1
F5
W2
H
W3
K1
W4
K2
W5
K3
F1
K4
F2
S1
F3
S2
F4

Calculate The Values For A Retaining Wall With Relief Shelves Given The Following Drawings And Conditions A Find The 1 (48.21 KiB) Viewed 20 times

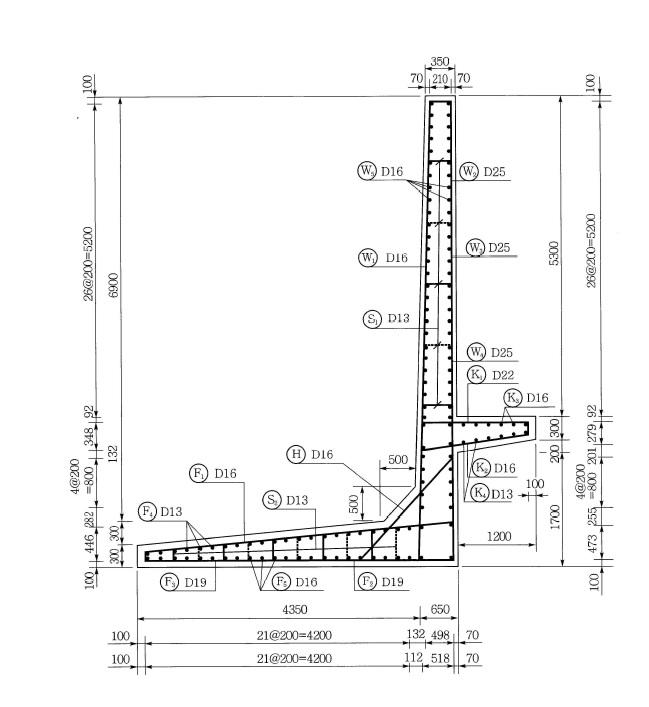

Cross Sectional View

Calculate The Values For A Retaining Wall With Relief Shelves Given The Following Drawings And Conditions A Find The 2 (6.83 KiB) Viewed 20 times

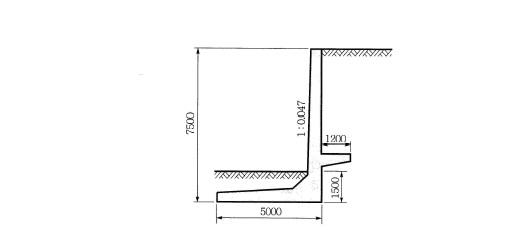

General View

Calculate The Values For A Retaining Wall With Relief Shelves Given The Following Drawings And Conditions A Find The 3 (27 KiB) Viewed 20 times

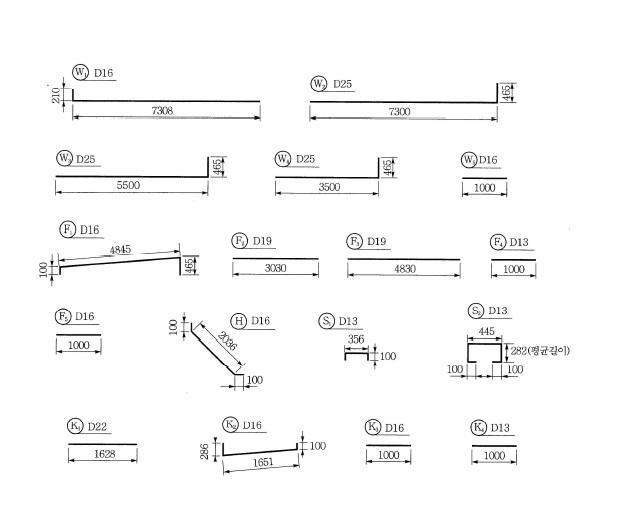

Rebar Detailed View
350 70/210.70 81 ooth W. D16 (W) D25 D25 26@200=5200 (W) D16 () 5300 26@200-5200 0069 * D13 W) D25 D22 (K) D16 2816008= Hoogle 132 H) D16 500 (K) D16 4@200 CD16 100 TTT 4@200 473 255-800 201 279,92 D13 +++ D13 F.) D13 500 1700 1200 100 446 282 HHHH HHHHH D19 F:) D16 D19 Гот 4350 100 132 498 70 21@200=4200 21@200=4200 100 412,518 70
OUZI 1500 27000:1 5000 AMMINIAI COSZ
(W) 016 (W) 025 OLZ 7308 7300 W) D25 (W) 125 WD16 997 465 5500 3500 1000 D16 019 (F) 019 FD13 4845 001 3030 4830 1000 D13 (F) 016 016 100 D13 356 2036 445 1000 100 282092201) 100 100 100 K) D22 KD16 K) D16 (K) D13 I 100 1628 987 1000 1000 1651
