The section of a concrete dam is shown in the figure. Concrete weighs 24.5kN/m and water weighs 9810N/mCoefficient of fr

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The section of a concrete dam is shown in the figure. Concrete weighs 24.5kN/m and water weighs 9810N/mCoefficient of fr

Post by answerhappygod »

The Section Of A Concrete Dam Is Shown In The Figure Concrete Weighs 24 5kn M And Water Weighs 9810n Mcoefficient Of Fr 1
The Section Of A Concrete Dam Is Shown In The Figure Concrete Weighs 24 5kn M And Water Weighs 9810n Mcoefficient Of Fr 1 (42.85 KiB) Viewed 27 times

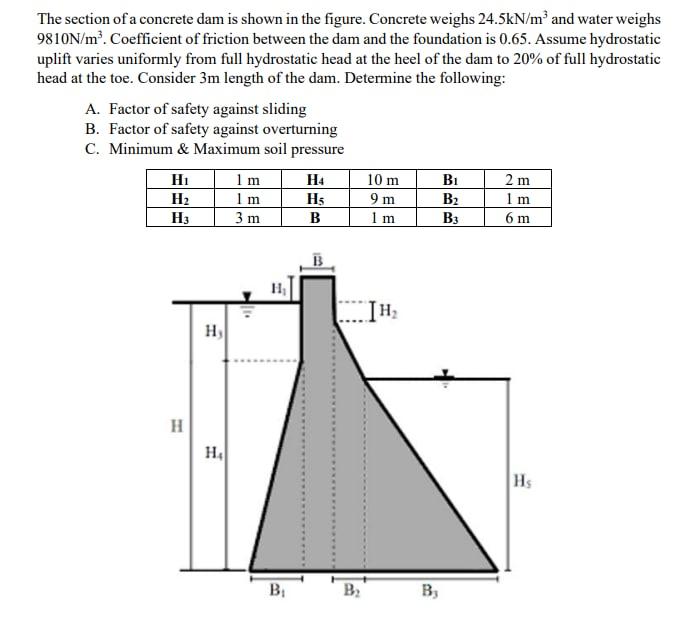

The section of a concrete dam is shown in the figure. Concrete weighs 24.5kN/m and water weighs 9810N/mCoefficient of friction between the dam and the foundation is 0.65. Assume hydrostatic uplift varies uniformly from full hydrostatic head at the heel of the dam to 20% of full hydrostatic head at the toe. Consider 3m length of the dam. Determine the following: A. Factor of safety against sliding B. Factor of safety against overturning C. Minimum & Maximum soil pressure 10 m Hi H2 H3 1 m Im 3 m 9 m H5 B B1 B2 B3 2 m 1 m 6 m FEED 1 m re IH н, H HA HS B B co B
