Question (1) [35 pts. The coefficient of friction between blocks A and Cand the horizontal surfaces is de =0.30. knowing

[answerhappygod]

Question 1 35 Pts The Coefficient Of Friction Between Blocks A And Cand The Horizontal Surfaces Is De 0 30 Knowing 1 (53.28 KiB) Viewed 23 times

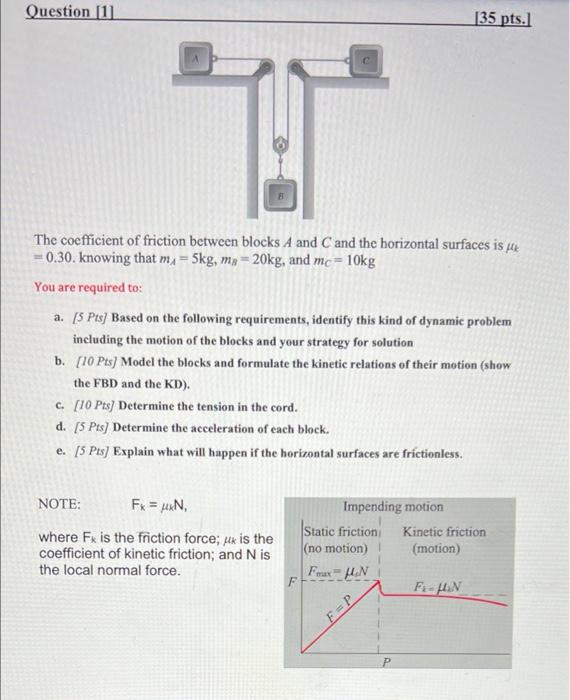

Question (1) [35 pts. The coefficient of friction between blocks A and Cand the horizontal surfaces is de =0.30. knowing that mA = 5kg, m3 = 20kg, and mc = 10kg You are required to: a. [5 Pts) Based on the following requirements, identify this kind of dynamic problem including the motion of the blocks and your strategy for solution b. [10 Pts] Model the blocks and formulate the kinetic relations of their motion (show the FBD and the KD). c. [10 Pts) Determine the tension in the cord. d. [5 Pts) Determine the acceleration of each block. e. [5 Pts) Explain what will happen if the horizontal surfaces are frictionless. NOTE: Fx = xxN. where Fx is the friction force; ux is the coefficient of kinetic friction; and Nis the local normal force. Impending motion Static friction Kinetic friction (no motion) (motion) Feux un F F:- HN
