Question [41 120 pts.] a) The bolt in the figure failed in single shear. Using the appropriate free body diagram, explai

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question [41 120 pts.] a) The bolt in the figure failed in single shear. Using the appropriate free body diagram, explai

Post by answerhappygod »

Question 41 120 Pts A The Bolt In The Figure Failed In Single Shear Using The Appropriate Free Body Diagram Explai 1
Question 41 120 Pts A The Bolt In The Figure Failed In Single Shear Using The Appropriate Free Body Diagram Explai 1 (31.12 KiB) Viewed 30 times

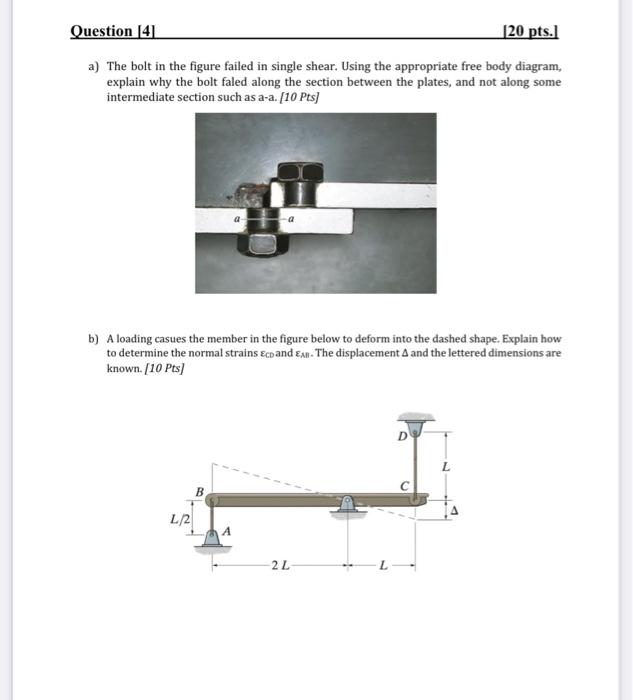

Question [41 120 pts.] a) The bolt in the figure failed in single shear. Using the appropriate free body diagram, explain why the bolt faled along the section between the plates, and not along some intermediate section such as a-a. [10 Pts] b) A loading casues the member in the figure below to deform into the dashed shape. Explain how to determine the normal strains &c and En. The displacement A and the lettered dimensions are known. [10 Pts] D B L 2 2L
