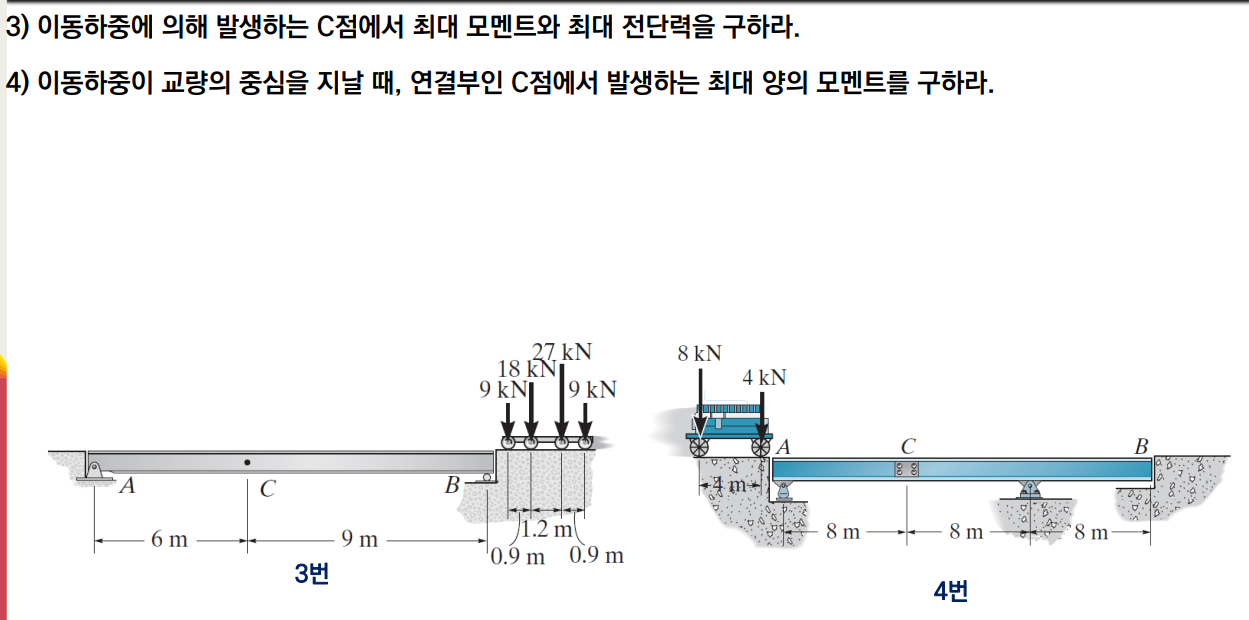

3) Find the maximum moment and maximum shear force at point C
caused by the moving load.
4) When the moving load passes through the center of the bridge,
find the maximum amount of moment that occurs at point C, the
connection.
3 Find The Maximum Moment And Maximum Shear Force At Point C Caused By The Moving Load 4 When The Moving Load Passes 1 (121.92 KiB) Viewed 26 times
3) 이동하중에 의해 발생하는 C점에서 최대 모멘트와 최대 전단력을 구하라. 4) 이동하중이 교량의 중심을 지날 때, 연결부인 C점에서 발생하는 최대 양의 모멘트를 구하라. 8 kN 27kN 18 KN 9 KN 9kN 4 kN MIN OF B A C C B mel 1.2 m 6 m 9 m 8m 8 m '8 m 10.9m 10.9 m 3번 4번
