Question 21 120 pts. E F 300 mm 400 mm 400 mm A D B B С The shown above rigid beam is supported by a pin at A and wires

Post by answerhappygod »

1
1 (26.8 KiB) Viewed 16 times

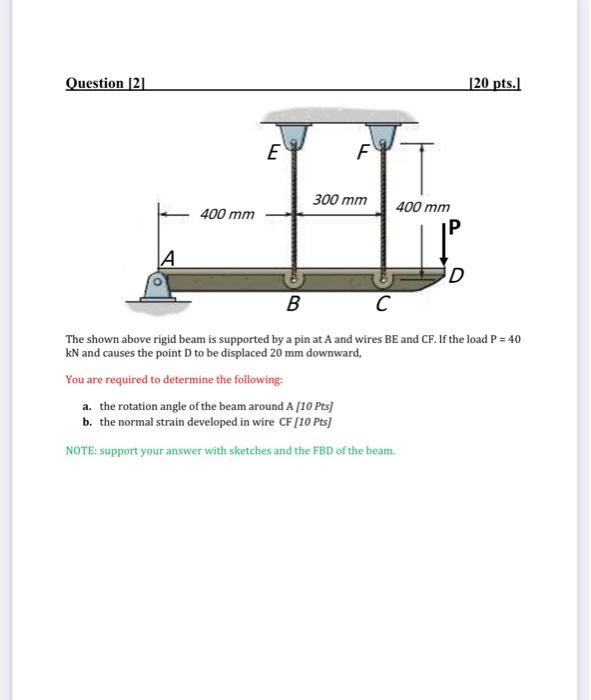

Question 21 120 pts. E F 300 mm 400 mm 400 mm A D B B С The shown above rigid beam is supported by a pin at A and wires BE and CF. If the load P = 40 kN and causes the point D to be displaced 20 mm downward, You are required to determine the following: a. the rotation angle of the beam around A [10 Pes] b. the normal strain developed in wire CF [10 Pts] NOTE: support your answer with sketches and the FBD of the beam.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
