Calculate Maximum Deflection for Beam 4 Use E = 25 GPS The section B4 is 200mm x 350mm Total DL = 14. 166 kN/m Live Load

Post by answerhappygod »

Calculate Maximum Deflection For Beam 4 Use E 25 Gps The Section B4 Is 200mm X 350mm Total Dl 14 166 Kn M Live Load 1
Calculate Maximum Deflection For Beam 4 Use E 25 Gps The Section B4 Is 200mm X 350mm Total Dl 14 166 Kn M Live Load 1 (35.36 KiB) Viewed 23 times

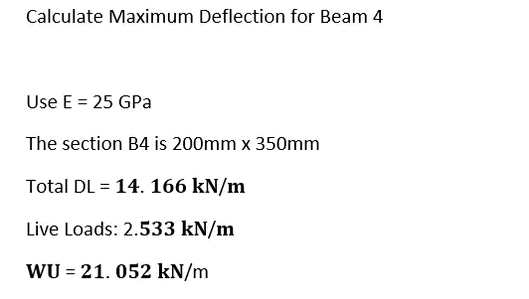

Calculate Maximum Deflection for Beam 4 Use E = 25 GPS The section B4 is 200mm x 350mm Total DL = 14. 166 kN/m Live Loads: 2.533 kN/m WU = 21. 052 kN/m
1.5m 5.5m GB1 5m B1 C1 B2 S2 B4 OPEN B3 S2 B2 4m C2 c1 ci GB2 B3 B2 s1 B5 SI B2 2m B3 B3 C1 To ci
