2. Use the alignment chart to determine the effective length factor kx for Column #1 (the exterior column at the ground

Post by answerhappygod »

2 Use The Alignment Chart To Determine The Effective Length Factor Kx For Column 1 The Exterior Column At The Ground 1
2 Use The Alignment Chart To Determine The Effective Length Factor Kx For Column 1 The Exterior Column At The Ground 1 (46.26 KiB) Viewed 26 times

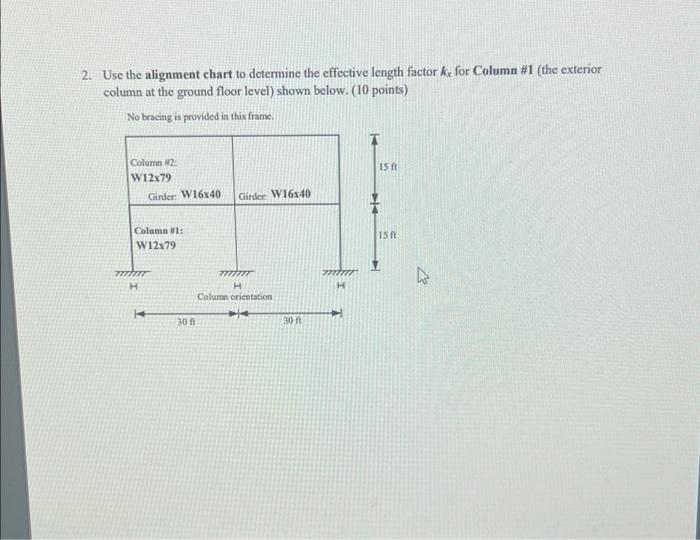

2. Use the alignment chart to determine the effective length factor kx for Column #1 (the exterior column at the ground floor level) shown below. (10 points) No bracing is provided in this frame 15 Column 2 WI2x79 Girder: W16x40 Girder W16x40 15 Ft Column W12379 777 2 777 H Column orientation 301 30
