Question 1: Construct the diagram and truth table of the following logic. a) NAND gate b) NOR gate Question 2: Convert t

[answerhappygod]

Question 1 Construct The Diagram And Truth Table Of The Following Logic A Nand Gate B Nor Gate Question 2 Convert T 1 (35.36 KiB) Viewed 19 times

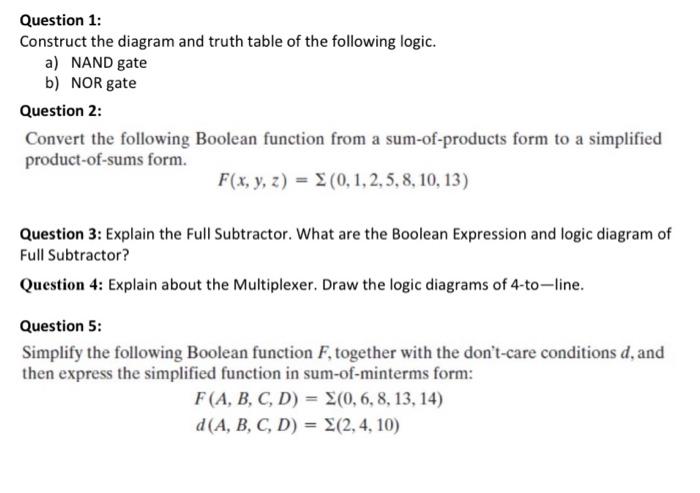

Question 1: Construct the diagram and truth table of the following logic. a) NAND gate b) NOR gate Question 2: Convert the following Boolean function from a sum-of-products form to a simplified product-of-sums form F(x, y, z) = (0,1,2,5, 8, 10, 13) Question 3: Explain the Full Subtractor. What are the Boolean Expression and logic diagram of Full Subtractor? Question 4: Explain about the Multiplexer. Draw the logic diagrams of 4-to-line. Question 5: Simplify the following Boolean function F, together with the don't care conditions d, and then express the simplified function in sum-of-minterms form: F(A, B, C, D) = (0,6, 8, 13, 14) d(A, B, C, D) = {(2, 4, 10)
