E3. Given the state diagram in Figure 1, in what state would the system be in after the following sequences of events? A

[answerhappygod]

E3 Given The State Diagram In Figure 1 In What State Would The System Be In After The Following Sequences Of Events A 1 (90.79 KiB) Viewed 23 times

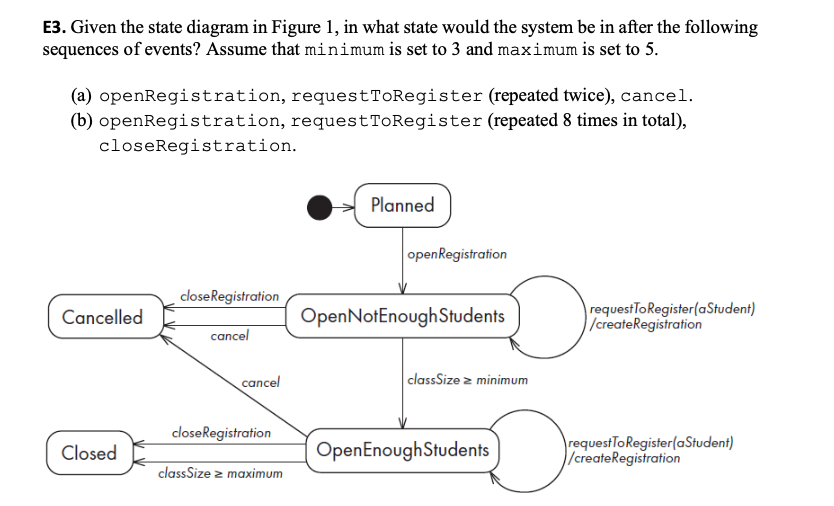

E3. Given the state diagram in Figure 1, in what state would the system be in after the following sequences of events? Assume that minimum is set to 3 and maximum is set to 5. (a) openRegistration, requestToRegister (repeated twice), cancel. (b) openRegistration, requestToRegister (repeated 8 times in total), closeRegistration. Planned Open Registration closeRegistration Cancelled OpenNotEnough Students D requestTo Register(aStudent) /createRegistration cancel cancel classSize 2 minimum close Registration Closed OpenEnough Students requestTo Register(aStudent) J/createRegistration classSize 2 maximum
