Digital Design Comp 231 Snapshot From Logisim Should Be Included Into Your Report With Your Id Displayed 5 Using A 1 (24.31 KiB) Viewed 35 times
Apply it in this program Logisim

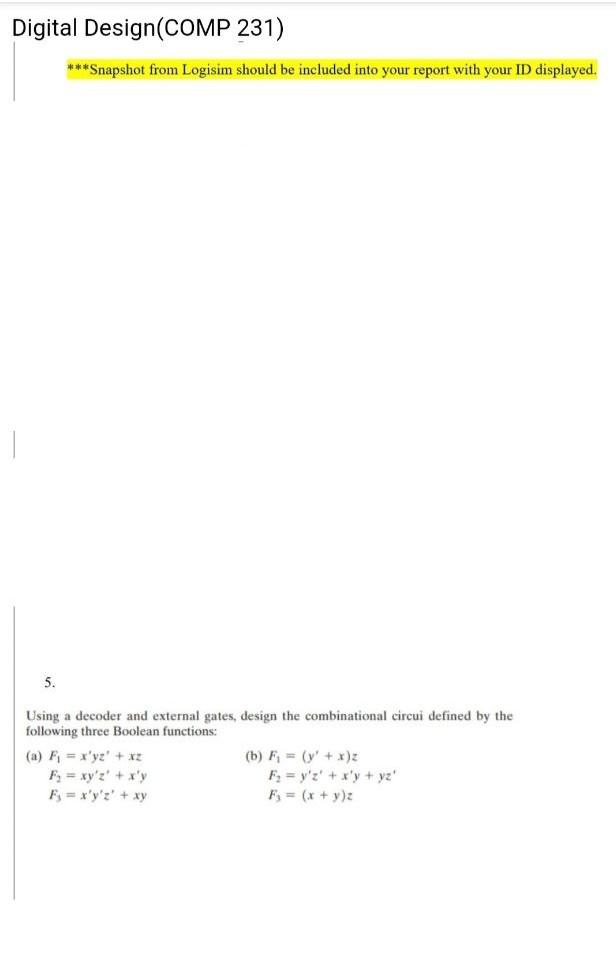

Digital Design(COMP 231) ***Snapshot from Logisim should be included into your report with your ID displayed. 5. Using a decoder and external gates, design the combinational circui defined by the following three Boolean functions: (a) F = x'yz' + x2 (b) F = (y + x)2 F3 = xyz + xy F = y'z' + xy + yz' F = x'y'z' + xy F = (x + y):
