GROUP 8 LRC series circuit connected in series with resistance of 4 ohms, a capacitor of 26 farad and an inductance of ½

Post by answerhappygod »

Group 8 Lrc Series Circuit Connected In Series With Resistance Of 4 Ohms A Capacitor Of 26 Farad And An Inductance Of 1
Group 8 Lrc Series Circuit Connected In Series With Resistance Of 4 Ohms A Capacitor Of 26 Farad And An Inductance Of 1 (36.44 KiB) Viewed 5 times

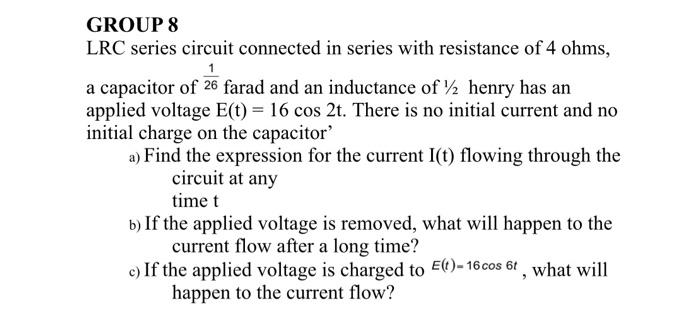

GROUP 8 LRC series circuit connected in series with resistance of 4 ohms, a capacitor of 26 farad and an inductance of ½ henry has an applied voltage E(t) = 16 cos 2t. There is no initial current and no initial charge on the capacitor' a) Find the expression for the current I(t) flowing through the circuit at any time t b) If the applied voltage is removed, what will happen to the current flow after a long time? c) If the applied voltage is charged to E(t)-16 cos 6t, what will happen to the current flow?
