Digital Design Comp 231 Snapshot From Logisim Should Be Included Into Your Report With Your Id Displayed 3 Impleme 1 (34.77 KiB) Viewed 22 times
Apply it in this program Logisim

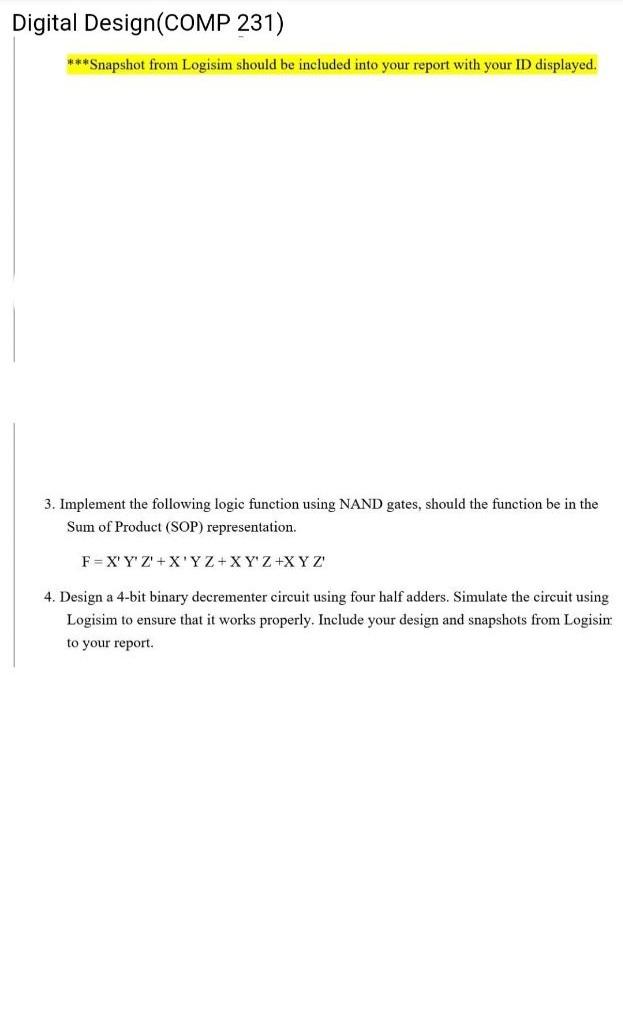

Digital Design(COMP 231) ***Snapshot from Logisim should be included into your report with your ID displayed, 3. Implement the following logic function using NAND gates, should the function be in the Sum of Product (SOP) representation FOX'Y'Z'+X'YZ+X Y Z +X Y Z 4. Design a 4-bit binary decrementer circuit using four half adders. Simulate the circuit using Logisim to ensure that it works properly. Include your design and snapshots from Logisin to your report
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
