A. Multiple Choice 1. (4 points) Find the equivalent capacitance in the following circuit: 1. 247.32uF ii. 18.42uF iii.

[answerhappygod]

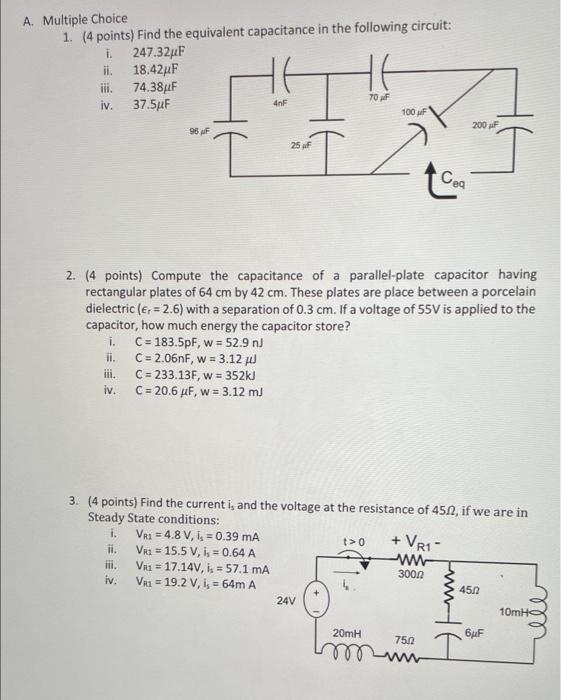

A Multiple Choice 1 4 Points Find The Equivalent Capacitance In The Following Circuit 1 247 32uf Ii 18 42uf Iii 1 (49.13 KiB) Viewed 25 times

A. Multiple Choice 1. (4 points) Find the equivalent capacitance in the following circuit: 1. 247.32uF ii. 18.42uF iii. 74.3841F iv. 37.5uF 70F 4nF th 100 MF 200 F 95 F 25 F Сеа 2. (4 points) Compute the capacitance of a parallel-plate capacitor having rectangular plates of 64 cm by 42 cm. These plates are place between a porcelain dielectric (= 2.6) with a separation of 0.3 cm. If a voltage of 55V is applied to the capacitor, how much energy the capacitor store? i. C = 183.5pF, w = 52.9 nJ C = 2.06nF, w = 3.12 iii. C = 233.13F, w = 352kJ C = 20.6 MF, W = 3.12 m) ii. iv. + VR1 - 3. (4 points) Find the current is and the voltage at the resistance of 450, if we are in Steady State conditions: i. VR1 = 4.8 V, is = 0.39 mA t> 0 ii. Vi = 15.5 V, is = 0.64 A w III. Vi = 17.14V, is = 57.1 mA 3000 iv. V1 = 19.2V, = 64m A 450 24V 10mH 20mH 6uF 750 mm
