។ M Ri 1. Consider the loaded voltage divider at right. The load resistor RL is connected across R2 (where v, is measure

[answerhappygod]

M Ri 1 Consider The Loaded Voltage Divider At Right The Load Resistor Rl Is Connected Across R2 Where V Is Measure 1 (264.07 KiB) Viewed 39 times

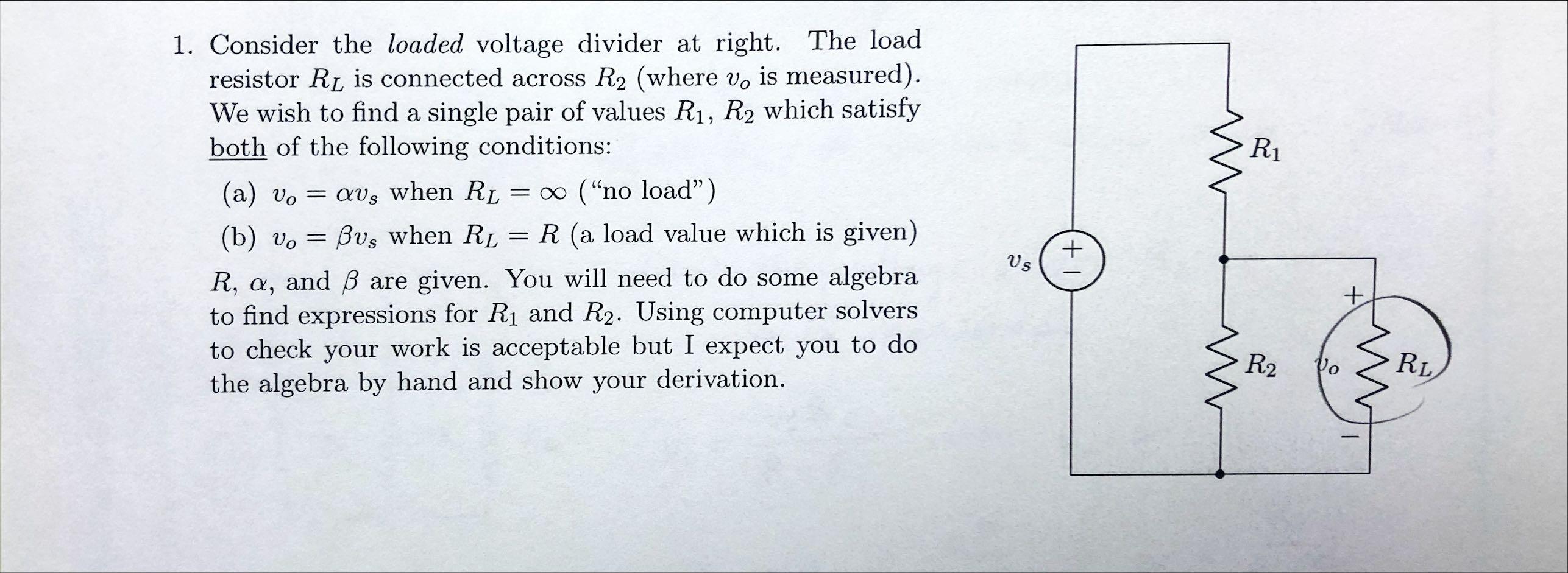

។ M Ri 1. Consider the loaded voltage divider at right. The load resistor RL is connected across R2 (where v, is measured). We wish to find a single pair of values R1, R2 which satisfy both of the following conditions: (a) v. = avs when RL = 0o (“no load") = (b) v. = Bvs when Rį ) RL = R (a load value which is given) R, a, and B are given. You will need to do some algebra to find expressions for Rį and R2. Using computer solvers to check your work is acceptable but I expect you to do the algebra by hand and show your derivation. + Us + R2 vo RL M
