Part B Consider the circuit shown in figure below. Assume R-5k (Egure 1) Figure Find the phasor V Enter your answers usi

[answerhappygod]

Part B Consider The Circuit Shown In Figure Below Assume R 5k Egure 1 Figure Find The Phasor V Enter Your Answers Usi 1 (22.65 KiB) Viewed 25 times

Part B Consider The Circuit Shown In Figure Below Assume R 5k Egure 1 Figure Find The Phasor V Enter Your Answers Usi 2 (25.18 KiB) Viewed 25 times

Part B Consider The Circuit Shown In Figure Below Assume R 5k Egure 1 Figure Find The Phasor V Enter Your Answers Usi 3 (20.93 KiB) Viewed 25 times

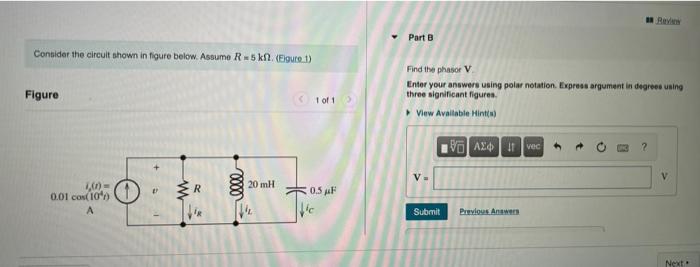

Part B Consider the circuit shown in figure below. Assume R-5k (Egure 1) Figure Find the phasor V Enter your answers using polar notation Express argument in degrees using three significant figures View Available Hints) < 1 of 1 VALO 1 vec h 2 R 20 mH w 4,0 0.01 cos10 A elle HE 0.5 AF Thie Submit Previous Answers Next

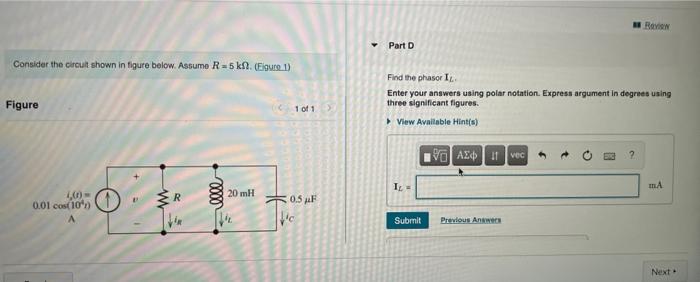

Review Part D Consider the circuit shown in figure below. Assume R=5k. Egure 1) Figure Find the phasor I Enter your answers using polar notation. Express argument in degrees using three significant figures. View Available Hint(e) 1 of 1 | ΑΣΦ vec 2 IL τιΑ. w 20 m 1) 0.01 cos( 10 ) 0.5 F Submit Previous Answers Next

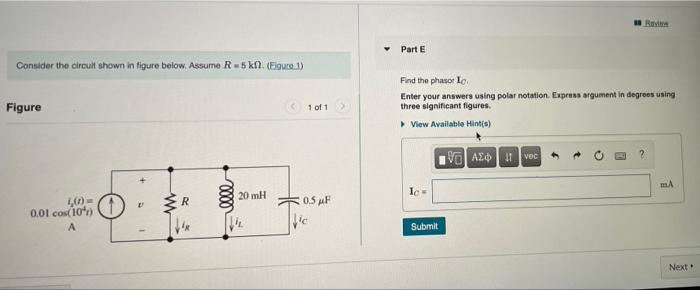

Bay Part 1 Consider the circult shown in figure below. Assume R-5k. (Figure 1) Figure 1 of 1 Find the phasor lo Enter your answers using polar notation Express argument in degrees using three significant figures. View Available Hints) AEG Voc MA IC- R 20 mH llll W 1,00 0.01 cos(109) 0.5 AF Submit Next
