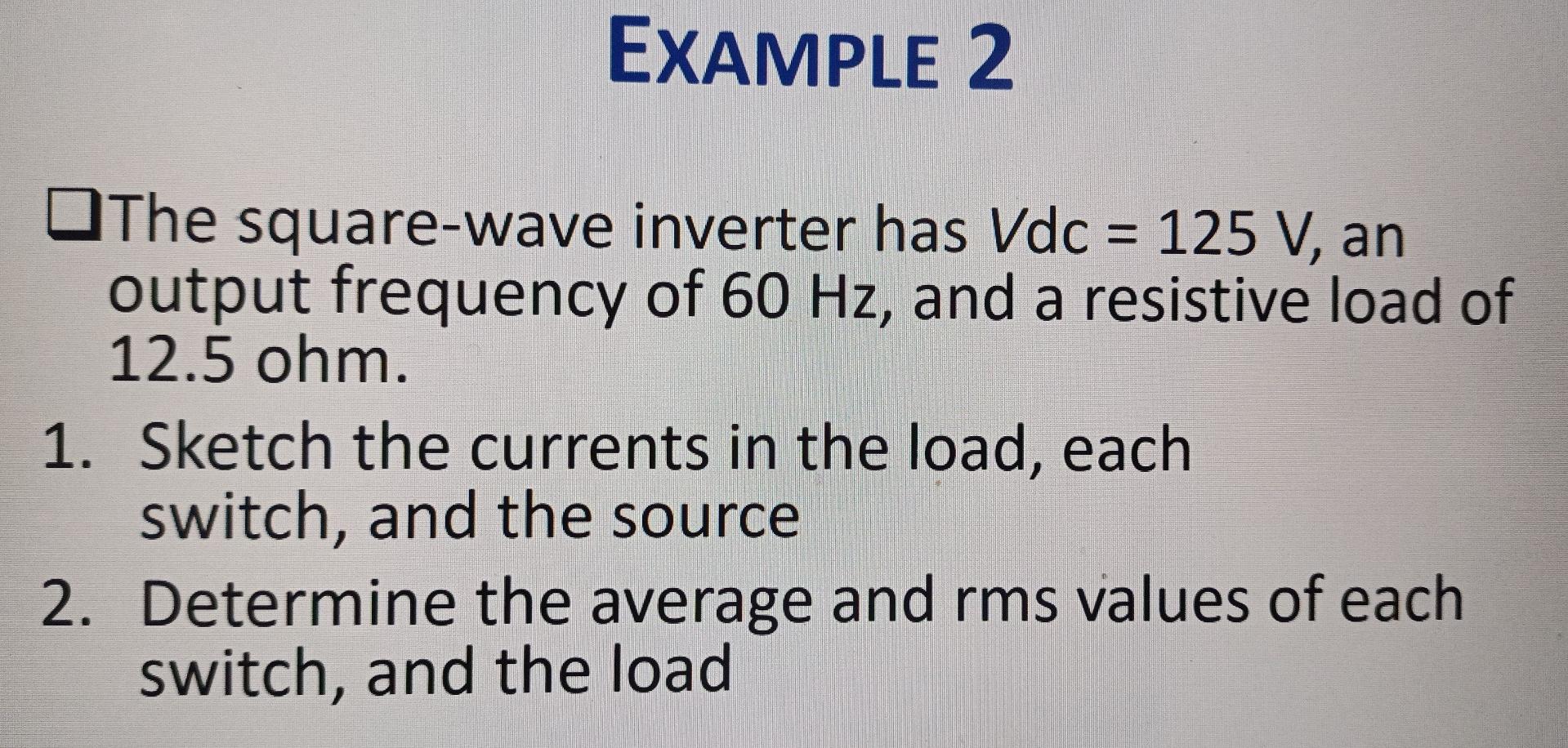

EXAMPLE 2 The square-wave inverter has Vdc = 125 V, an output frequency of 60 Hz, and a resistive load of 12.5 ohm. 1. Sketch the currents in the load, each switch, and the source 2. Determine the average and rms values of each switch, and the load

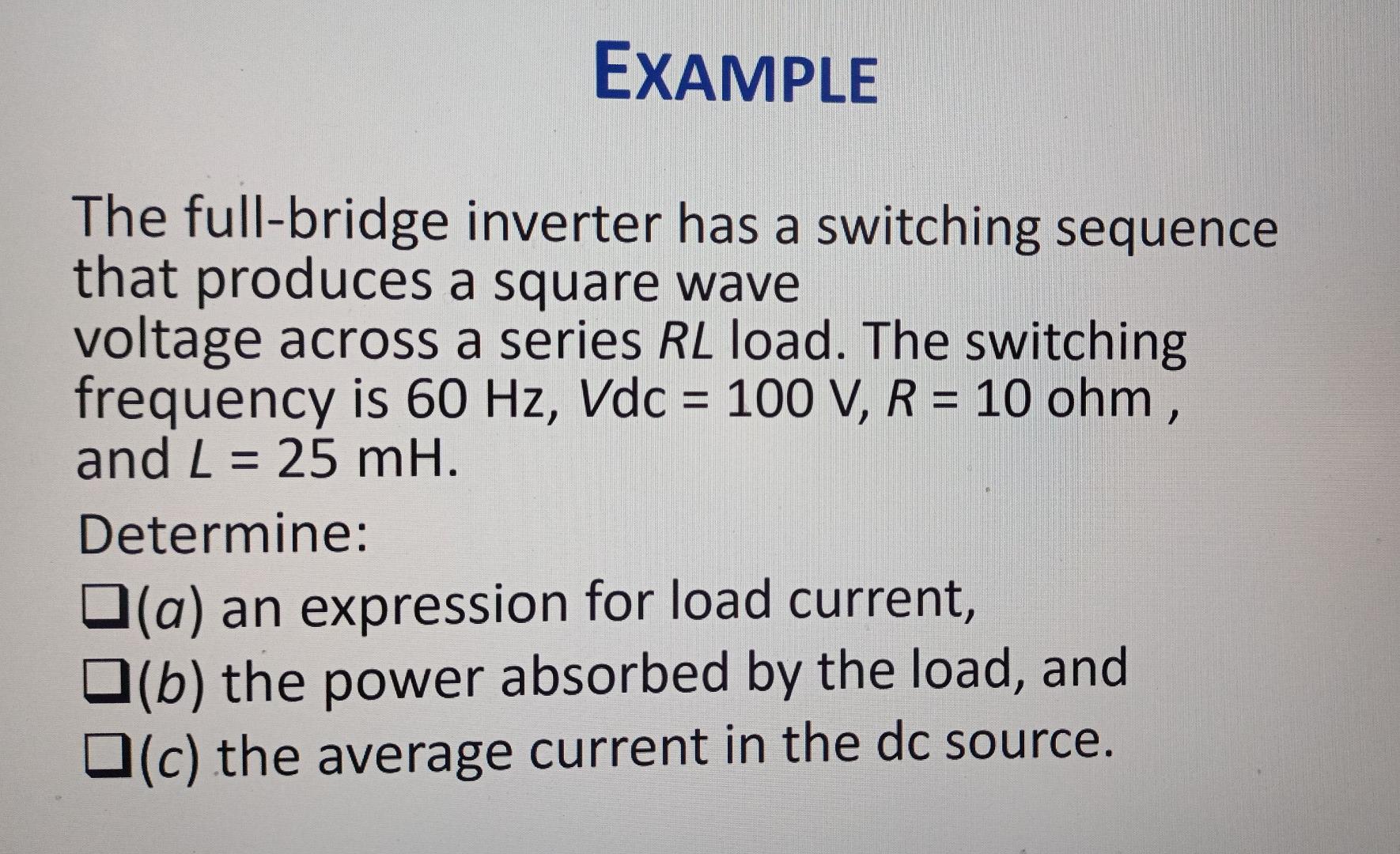

EXAMPLE The full-bridge inverter has a switching sequence that produces a square wave voltage across a series RL load. The switching frequency is 60 Hz, Vdc = 100 V, R = 10 ohm, and L = 25 mH. Determine: (a) an expression for load current, (b) the power absorbed by the load, and (c) the average current in the dc source.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
