Question 1: (10 marks) For the circuit shown in Fig. 1 below, use Matlab and Nodal analysis to indicate the expected rea

Post by answerhappygod »

Question 1 10 Marks For The Circuit Shown In Fig 1 Below Use Matlab And Nodal Analysis To Indicate The Expected Rea 1
Question 1 10 Marks For The Circuit Shown In Fig 1 Below Use Matlab And Nodal Analysis To Indicate The Expected Rea 1 (29.53 KiB) Viewed 20 times
Question 1 10 Marks For The Circuit Shown In Fig 1 Below Use Matlab And Nodal Analysis To Indicate The Expected Rea 2
Question 1 10 Marks For The Circuit Shown In Fig 1 Below Use Matlab And Nodal Analysis To Indicate The Expected Rea 2 (9.17 KiB) Viewed 20 times

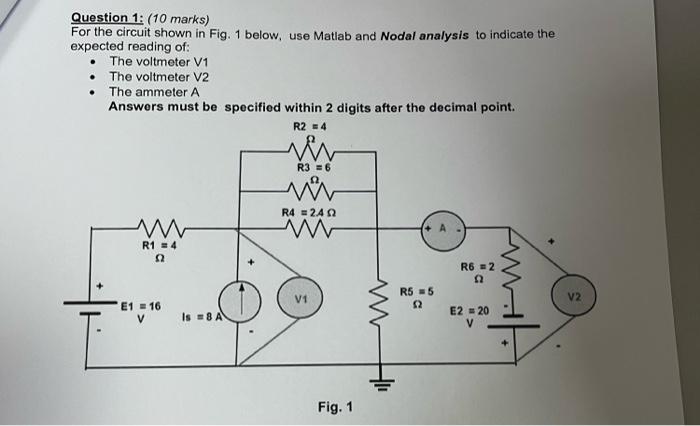

Question 1: (10 marks) For the circuit shown in Fig. 1 below, use Matlab and Nodal analysis to indicate the expected reading of: The voltmeter V1 The voltmeter V2 The ammeter A Answers must be specified within 2 digits after the decimal point. R2 = 4 vis R3 = 6 w R4 = 24 W W R1 - 4 Ω R6 = 2 Ω R5 = 5 E1 = 16 12 E2 = 20 Is = 8A V1 V2 W IH Fig. 1
Results: V1= V2= A=
