9.1. A circuit has an impulse response (between a voltage input and voltage output) as h(t) = [u(t) - u(t - 3)]. If the

[answerhappygod]

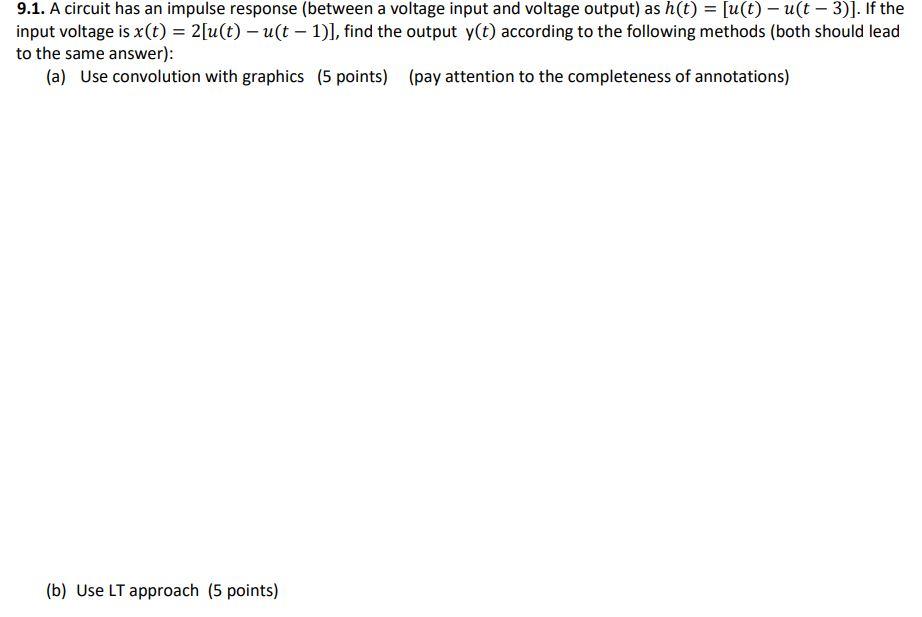

9 1 A Circuit Has An Impulse Response Between A Voltage Input And Voltage Output As H T U T U T 3 If The 1 (34.27 KiB) Viewed 16 times

9.1. A circuit has an impulse response (between a voltage input and voltage output) as h(t) = [u(t) - u(t - 3)]. If the input voltage is x(t) = 2[u(t) – uſt - 1)], find the output y(t) according to the following methods (both should lead to the same answer): (a) Use convolution with graphics (5 points) (pay attention to the completeness of annotations) (b) Use LT approach (5 points)
