12. Refer to the image shown here in answering this question. 800 lbs The rectangular beam shown in this figure has a cr

Post by answerhappygod »

12 Refer To The Image Shown Here In Answering This Question 800 Lbs The Rectangular Beam Shown In This Figure Has A Cr 1
12 Refer To The Image Shown Here In Answering This Question 800 Lbs The Rectangular Beam Shown In This Figure Has A Cr 1 (18.16 KiB) Viewed 11 times

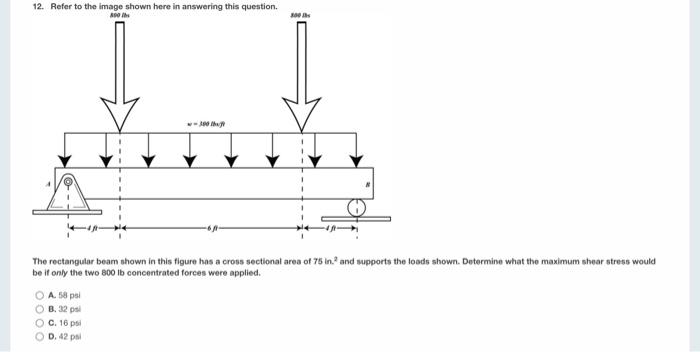

12. Refer to the image shown here in answering this question. 800 lbs The rectangular beam shown in this figure has a cross sectional area of 75 in. and supports the loads shown. Determine what the maximum shear stress would be if only the two 800 lb concentrated forces were applied. A. 58 psi OB. 32 psl 300 O C. 16 psi OD. 42 psl
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
