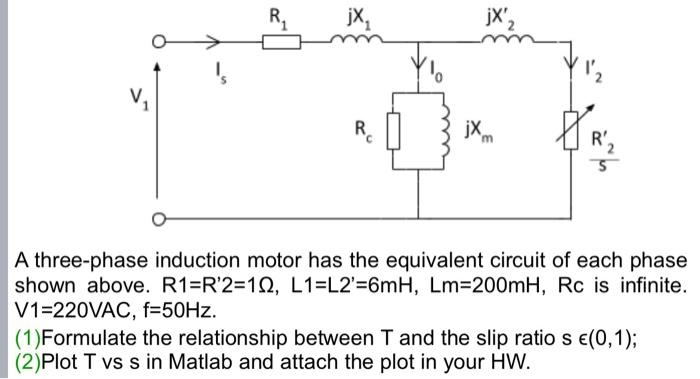

R jX, RO A three-phase induction motor has the equivalent circuit of each phase shown above. R1=R'2=112, L1=L2'=6mH, Lm=200mH, Rc is infinite. V1=220VAC, f=50Hz. (1) Formulate the relationship between T and the slip ratio s €(0,1); (2)Plot T vs s in Matlab and attach the plot in your HW.
