2.2 A single-phase, 2400/240-V, 120-KVA two-winding transformer is connected as an auto-transformer with additive polari

Post by answerhappygod »

2 2 A Single Phase 2400 240 V 120 Kva Two Winding Transformer Is Connected As An Auto Transformer With Additive Polari 1
2 2 A Single Phase 2400 240 V 120 Kva Two Winding Transformer Is Connected As An Auto Transformer With Additive Polari 1 (39.96 KiB) Viewed 20 times

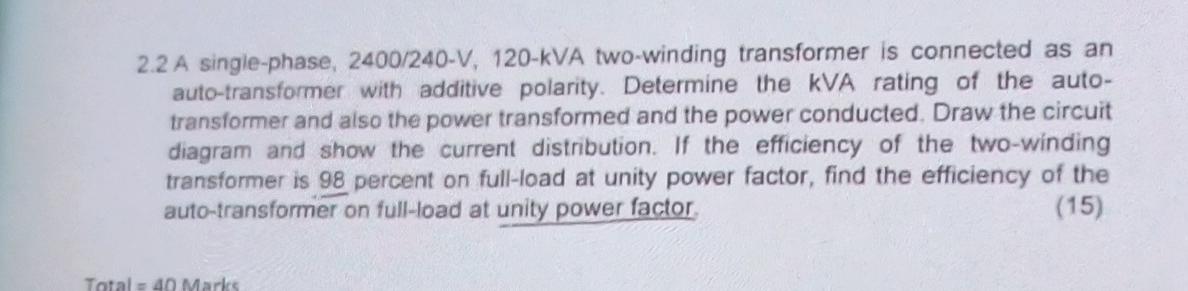

2.2 A single-phase, 2400/240-V, 120-KVA two-winding transformer is connected as an auto-transformer with additive polarity. Determine the kVA rating of the auto- transformer and also the power transformed and the power conducted. Draw the circuit diagram and show the current distribution. If the efficiency of the two-winding transformer is 98 percent on full-load at unity power factor, find the efficiency of the auto-transformer on full-load at unity power factor (15) Total = 40 Marks
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
