Three different Batteries (E1, Ez and E3) are connected in parallel supplies a Load (RL), determine the currents (11,12

Post by answerhappygod »

Three Different Batteries E1 Ez And E3 Are Connected In Parallel Supplies A Load Rl Determine The Currents 11 12 1
Three Different Batteries E1 Ez And E3 Are Connected In Parallel Supplies A Load Rl Determine The Currents 11 12 1 (29.68 KiB) Viewed 20 times

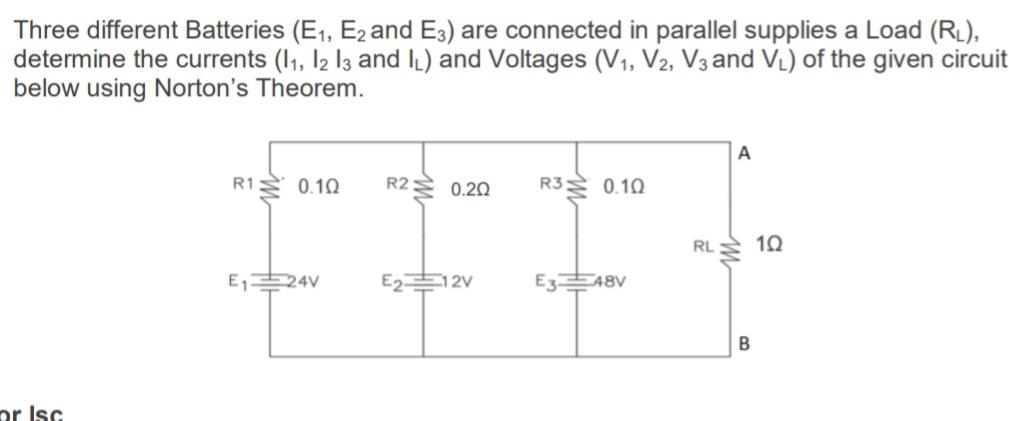

Three different Batteries (E1, Ez and E3) are connected in parallel supplies a Load (RL), determine the currents (11,12 13 and IL) and Voltages (V1, V2, V3 and VL) of the given circuit below using Norton's Theorem. A R1 0.102 R2 0.20 R30.10 RL M g 10 W E 24V E2 12V E3 E48V B or Isc
