Problem 1: 150% As an engineer, you are requested to develop an Arduino project for air flow direction control using LM3

Post by answerhappygod »

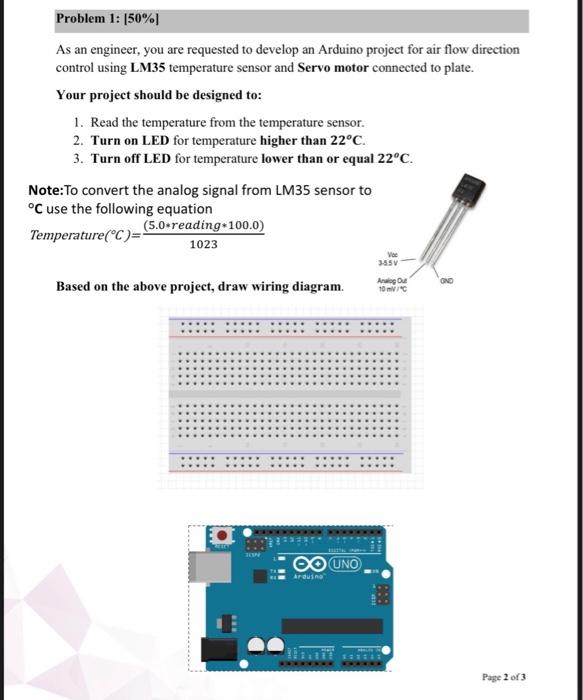

Problem 1 150 As An Engineer You Are Requested To Develop An Arduino Project For Air Flow Direction Control Using Lm3 1
Problem 1 150 As An Engineer You Are Requested To Develop An Arduino Project For Air Flow Direction Control Using Lm3 1 (47.65 KiB) Viewed 12 times
Problem 1: 150% As an engineer, you are requested to develop an Arduino project for air flow direction control using LM35 temperature sensor and Servo motor connected to plate. Your project should be designed to: 1. Read the temperature from the temperature sensor. 2. Turn on LED for temperature higher than 22°C. 3. Turn off LED for temperature lower than or equal 22°C. Note:To convert the analog signal from LM35 sensor to °C use the following equation (5.0-reading 100.0) Temperature (°C)=1 1023 385V AD 10V/ Based on the above project, draw wiring diagram. OND O UNO Arduino Page 2 of 3
