Q5. Open or close of a machine (M) is determined by three buttons (A, B, and C). The Boolean expression of the ON/OFF co

Post by answerhappygod »

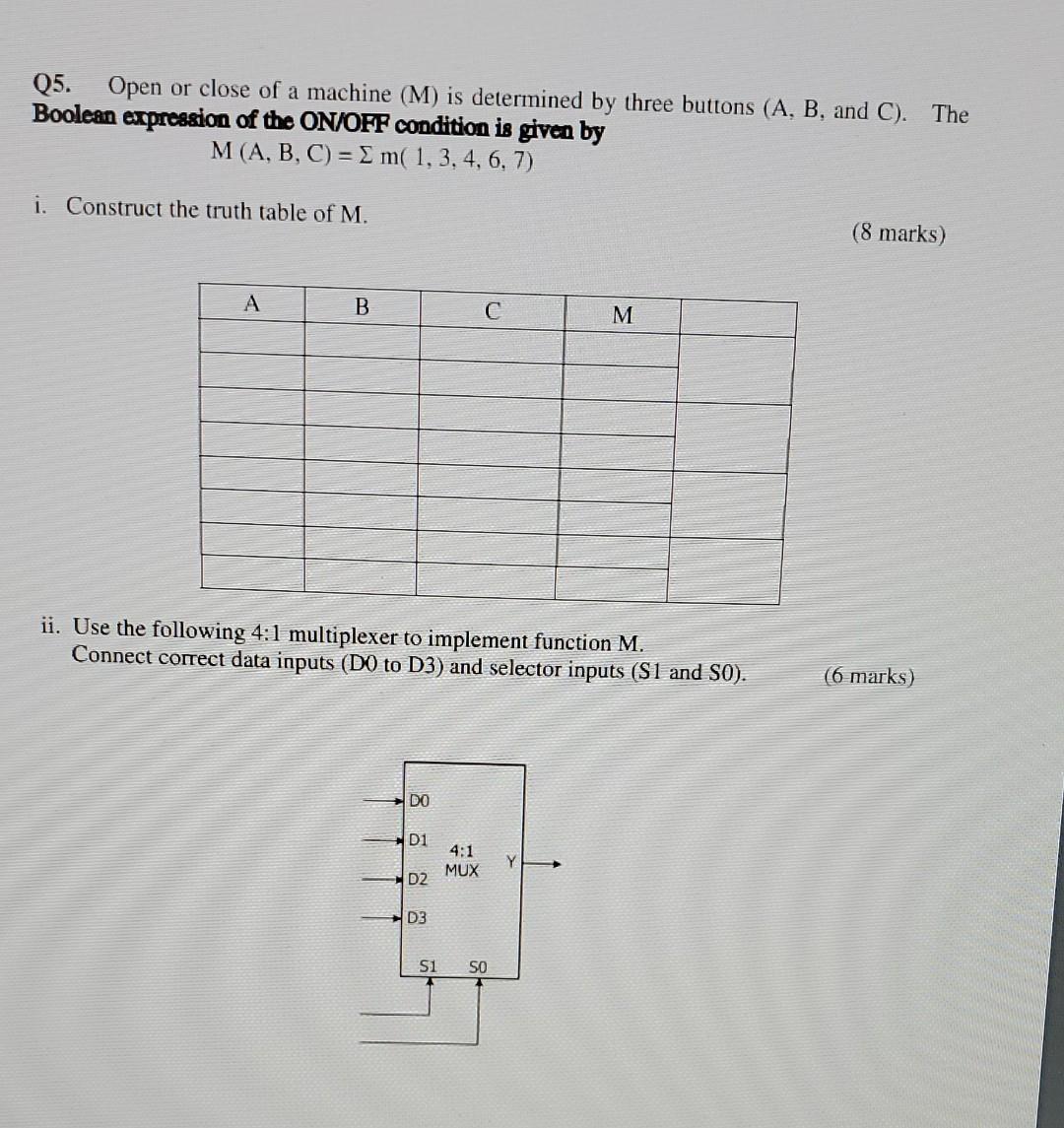

Q5 Open Or Close Of A Machine M Is Determined By Three Buttons A B And C The Boolean Expression Of The On Off Co 1
Q5 Open Or Close Of A Machine M Is Determined By Three Buttons A B And C The Boolean Expression Of The On Off Co 1 (163.78 KiB) Viewed 38 times
Q5. Open or close of a machine (M) is determined by three buttons (A, B, and C). The Boolean expression of the ON/OFF condition is given by M(A, B, C) = { m( 1, 3, 4, 6, 7) = i. Construct the truth table of M. (8 marks) A B с M ii. Use the following 4:1 multiplexer to implement function M. Connect correct data inputs (D0 to D3) and selector inputs (S1 and SO). (6 marks) DO D1 4:1 MUX Y D2 D3 si SO
