2. An overhanging beam having a span of 8 m has its overhang 2 m from both ends. The beam carries a uniformly distribute

[answerhappygod]

2 An Overhanging Beam Having A Span Of 8 M Has Its Overhang 2 M From Both Ends The Beam Carries A Uniformly Distribute 1 (121.43 KiB) Viewed 23 times

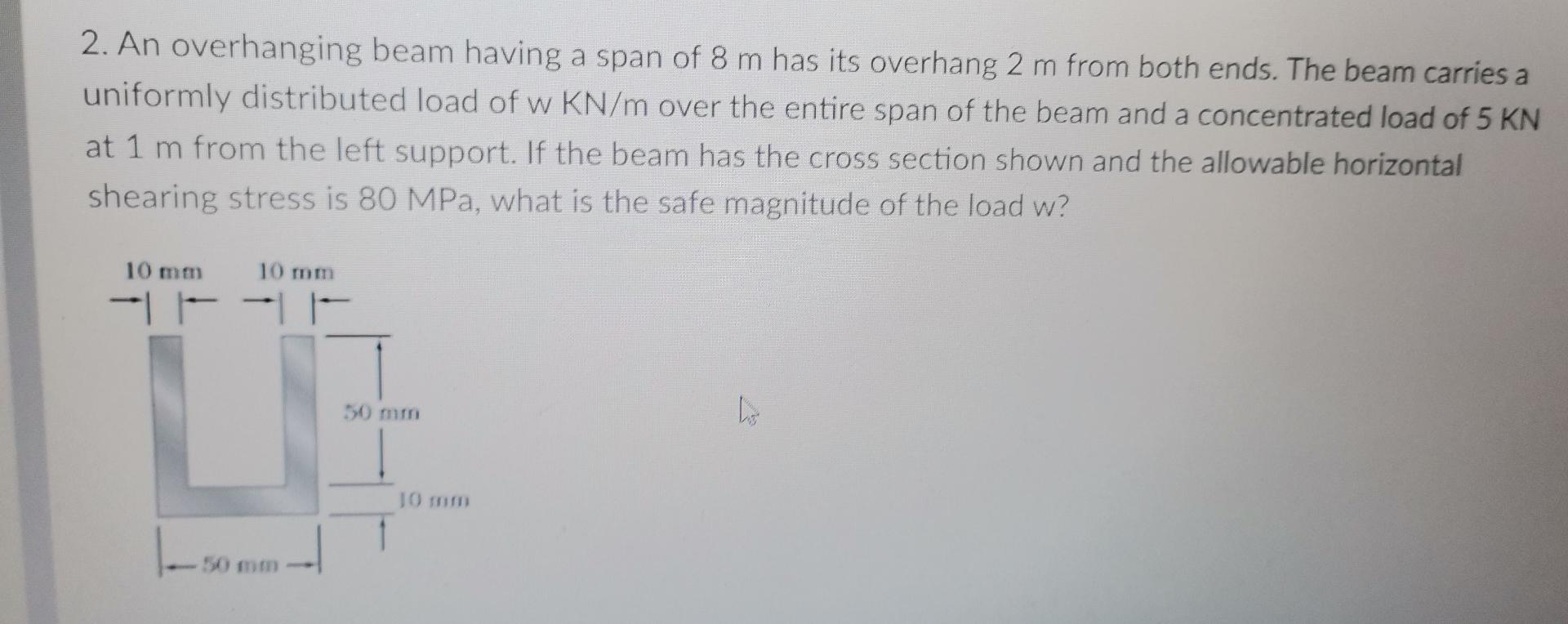

2. An overhanging beam having a span of 8 m has its overhang 2 m from both ends. The beam carries a uniformly distributed load of w KN/m over the entire span of the beam and a concentrated load of 5 KN at 1 m from the left support. If the beam has the cross section shown and the allowable horizontal shearing stress is 80 MPa, what is the safe magnitude of the load w? 10 mm 10 mm TAT 50 mm 50 mm 10 mm Lo
