Q1. Port the following 2 Boolean functions to the 3 programmable logic devices (ROM, PLA, PAL) by marking the closed con

[answerhappygod]

Q1 Port The Following 2 Boolean Functions To The 3 Programmable Logic Devices Rom Pla Pal By Marking The Closed Con 1 (330.5 KiB) Viewed 19 times

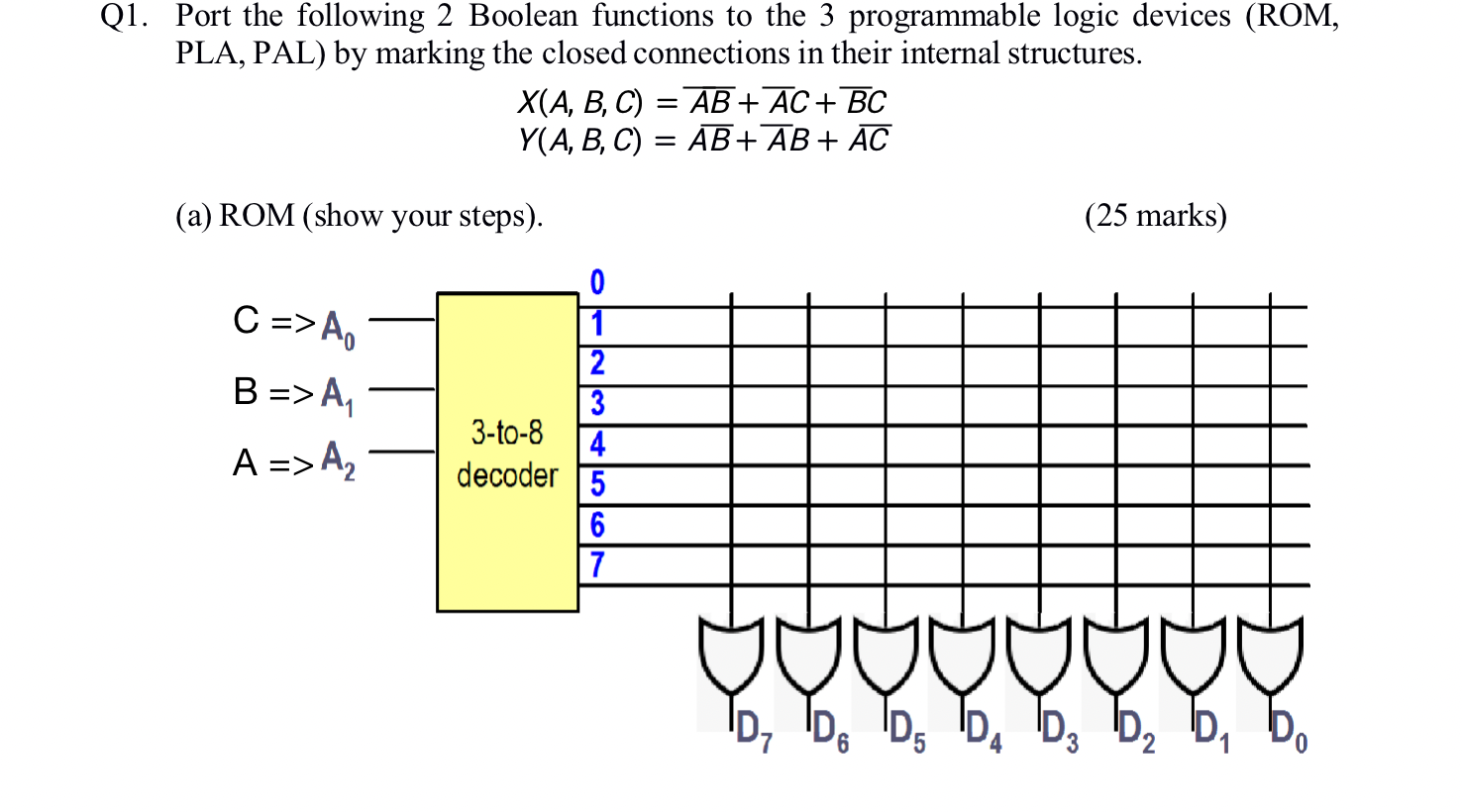

Q1. Port the following 2 Boolean functions to the 3 programmable logic devices (ROM, PLA, PAL) by marking the closed connections in their internal structures. X(A, B, C) = AB + AC + BC Y(A, B, C) = AB+ AB + AC = (a) ROM (show your steps). (25 marks) C => A, B => A, A => A2 0 1 2 3 4 3-to-8 decoder 5 6 7 voor 828859 6 3
