4. (20 points) Find the Thévenin equivalent circuit and the maximum power transfer that can be delivered to a load by th

Post by answerhappygod »

4 20 Points Find The Thevenin Equivalent Circuit And The Maximum Power Transfer That Can Be Delivered To A Load By Th 1
4 20 Points Find The Thevenin Equivalent Circuit And The Maximum Power Transfer That Can Be Delivered To A Load By Th 1 (29.54 KiB) Viewed 26 times

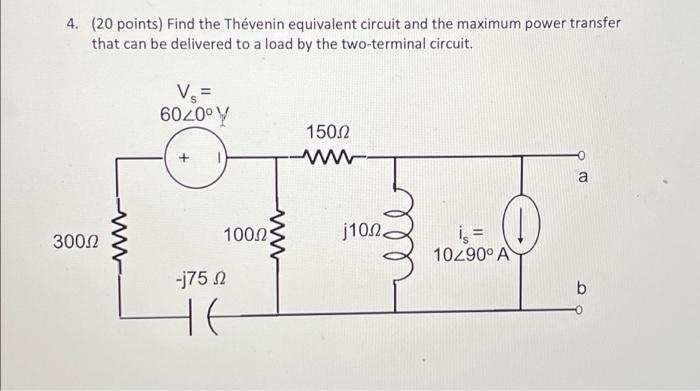

4. (20 points) Find the Thévenin equivalent circuit and the maximum power transfer that can be delivered to a load by the two-terminal circuit. V= 6020° Y 150Ω 0 a w 300Ω 100.2 j101 is = 10290° A -j75 Ω b HE ㅏ
