stion Two (5 pts) 3-bus system that consists of one generator (slack) bus and two PQ (load) busses, a were obtained: Bus

[answerhappygod]

Stion Two 5 Pts 3 Bus System That Consists Of One Generator Slack Bus And Two Pq Load Busses A Were Obtained Bus 1 (35.13 KiB) Viewed 13 times

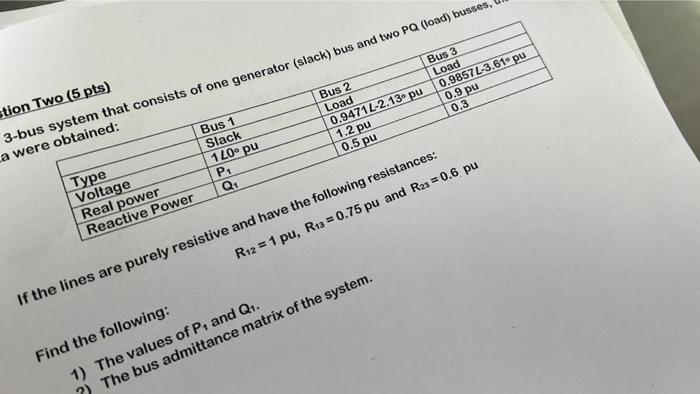

stion Two (5 pts) 3-bus system that consists of one generator (slack) bus and two PQ (load) busses, a were obtained: Bus Bus 2 Bus 3 Type Slack Load Load Voltage 1 L0° pu 0.9471 L-2.13º pu 0.9857L-3.61 pu 0.9 pu Real power 1.2 pu P 0.3 Reactive Power 0.5 pu Q1 If the lines are purely resistive and have the following resistances: R12 = 1 pu, R13 = 0.75 pu and R2 = 0.6 pu Find the following: 1) The values of P1 and Qu. 2) The bus admittance matrix of the system.
