Figure 2 shows a PWM inverter operates with 40% duty cycle at 1 kHz across 20 resistor in series with 10 mH inductor. P

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Figure 2 shows a PWM inverter operates with 40% duty cycle at 1 kHz across 20 resistor in series with 10 mH inductor. P

Post by answerhappygod »

Figure 2 Shows A Pwm Inverter Operates With 40 Duty Cycle At 1 Khz Across 20 Resistor In Series With 10 Mh Inductor P 1
Figure 2 Shows A Pwm Inverter Operates With 40 Duty Cycle At 1 Khz Across 20 Resistor In Series With 10 Mh Inductor P 1 (25.08 KiB) Viewed 16 times

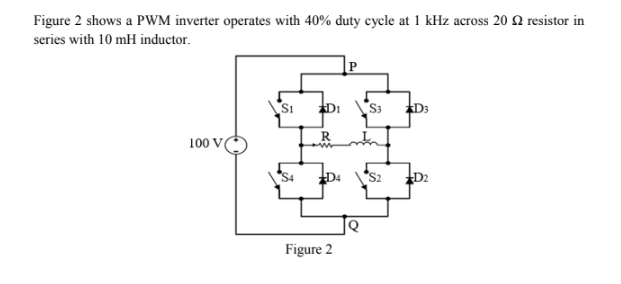

Figure 2 shows a PWM inverter operates with 40% duty cycle at 1 kHz across 20 resistor in series with 10 mH inductor. P CS1 S3 D3 100 V R W D4 *S2 D2 Figure 2
(d) Write the voltage expression for fundamental component. Hence, determine the RMS value of fundamental component. [2 marks]
