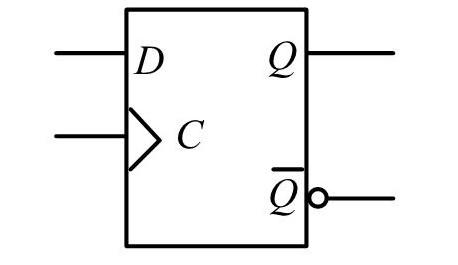

From the circuit and the input signal as shown in the figure
below.

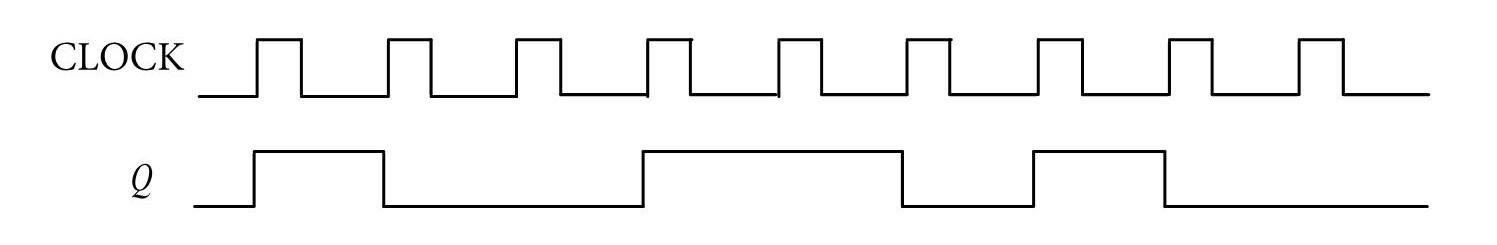

At the output signal coming out of the D flip-flop circuit, the
clock signal is positively actuated. Find the input signal D,
assuming the initial signal Q is zero.
From The Circuit And The Input Signal As Shown In The Figure Below At The Output Signal Coming Out Of The D Flip Flop C 1 (8.69 KiB) Viewed 18 times
From The Circuit And The Input Signal As Shown In The Figure Below At The Output Signal Coming Out Of The D Flip Flop C 2 (20.68 KiB) Viewed 18 times
D Q С Ole
CLOCK Q
