The DC-DC converter shown in Figure 1 operates at 1 kHz. mm L 0.52A 24 V 100 Ω 0.04A ( . 0.6T Figure 1 (b) Draw followin
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The DC-DC converter shown in Figure 1 operates at 1 kHz. mm L 0.52A 24 V 100 Ω 0.04A ( . 0.6T Figure 1 (b) Draw followin

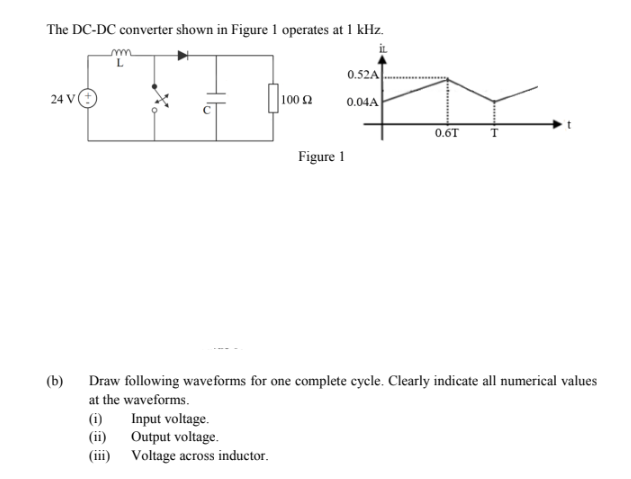

The DC-DC converter shown in Figure 1 operates at 1 kHz. mm L 0.52A 24 V 100 Ω 0.04A ( . 0.6T Figure 1 (b) Draw following waveforms for one complete cycle. Clearly indicate all numerical values at the waveforms. (1) Input voltage (ii) Output voltage (iii) Voltage across inductor.
