The DC-DC converter shown in Figure 1 operates at 1 kHz. mm 0.52A 0.04A 24 V 10022 t 0.6T Figure 1 (a) Determine for the
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The DC-DC converter shown in Figure 1 operates at 1 kHz. mm 0.52A 0.04A 24 V 10022 t 0.6T Figure 1 (a) Determine for the

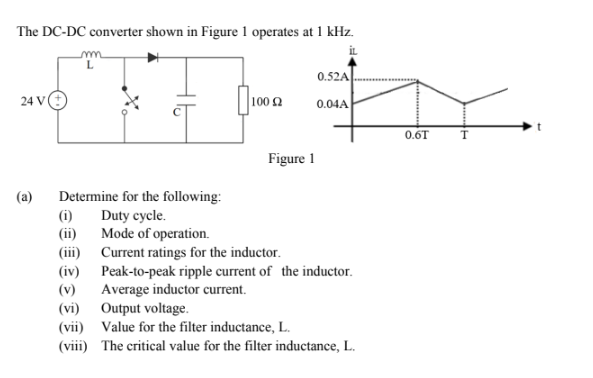

The DC-DC converter shown in Figure 1 operates at 1 kHz. mm 0.52A 0.04A 24 V 10022 t 0.6T Figure 1 (a) Determine for the following: (1) Duty cycle. (ii) Mode of operation (iii) Current ratings for the inductor. (iv) Peak-to-peak ripple current of the inductor. (v) Average inductor current (vi) Output voltage. (vii) Value for the filter inductance, L. (viii) The critical value for the filter inductance, L.
