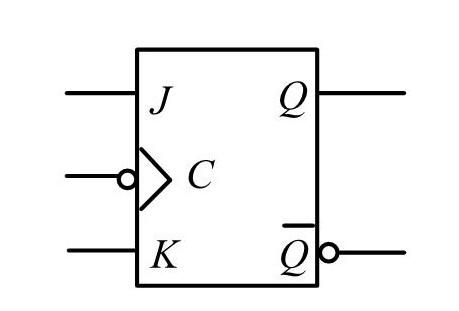

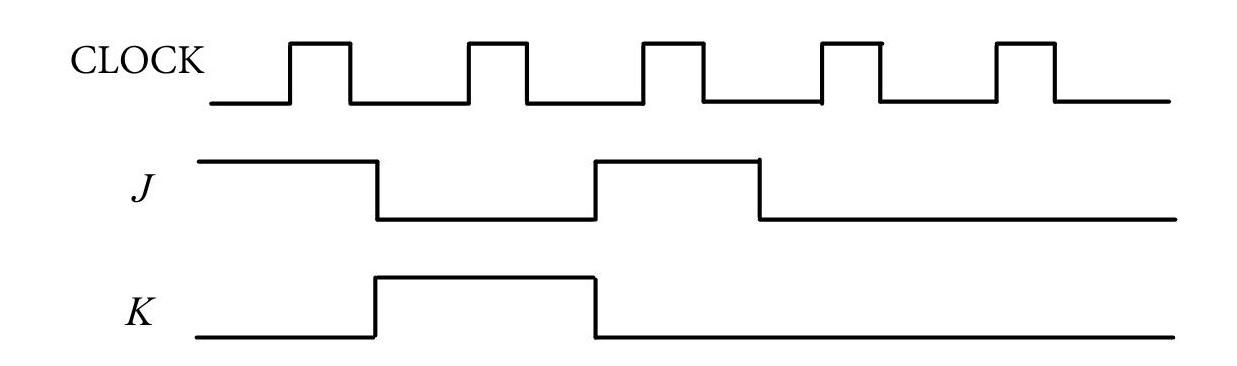

From the circuit and the input signal as shown in the figure
below.
At the input signal to the J-K flip-flop circuit, the clock
signal has negative actuation. Find the output signal Q assuming
the initial signal Q is zero.
From The Circuit And The Input Signal As Shown In The Figure Below At The Input Signal To The J K Flip Flop Circuit Th 1 (9.49 KiB) Viewed 15 times
From The Circuit And The Input Signal As Shown In The Figure Below At The Input Signal To The J K Flip Flop Circuit Th 2 (21.2 KiB) Viewed 15 times
J Q C T K Q
CLOCK J K
