Question 1: (10 marks) expected reading of: For the circuit shown in Fig. 1 below, use Matlab and Nodal analysis to indi

[answerhappygod]

Question 1 10 Marks Expected Reading Of For The Circuit Shown In Fig 1 Below Use Matlab And Nodal Analysis To Indi 1 (30.5 KiB) Viewed 15 times

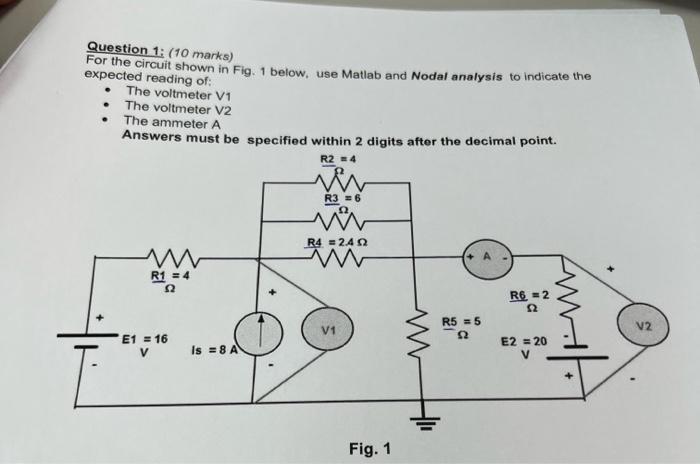

Question 1: (10 marks) expected reading of: For the circuit shown in Fig. 1 below, use Matlab and Nodal analysis to indicate the The voltmeter V1 The voltmeter V2 The ammeter A Answers must be specified within 2 digits after the decimal point. R2 = 4 R3 = 6 R4 = 2.42 w R1 = 4 W 12 R6 = 2 12 + R5 = 5 Ω V2 E1 = 16 W E2 = 20 Is = 8A Fig. 1
