The two bars shown in the figure are used to support a load P. When unloaded, joint B has coordinates (0, 0). After load

Post by answerhappygod »

The Two Bars Shown In The Figure Are Used To Support A Load P When Unloaded Joint B Has Coordinates 0 0 After Load 1
The Two Bars Shown In The Figure Are Used To Support A Load P When Unloaded Joint B Has Coordinates 0 0 After Load 1 (32.92 KiB) Viewed 13 times

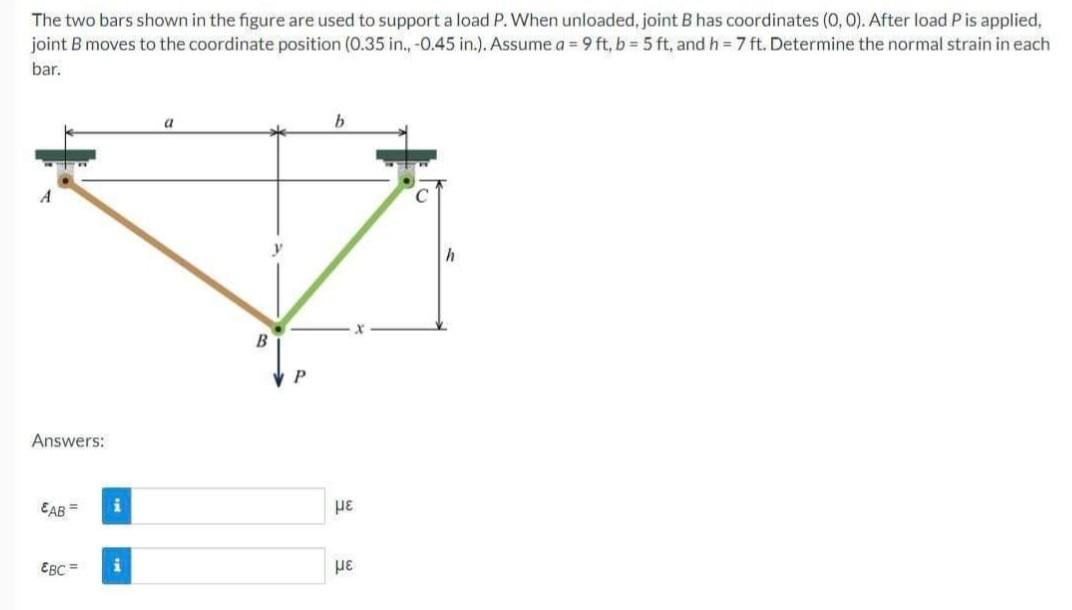

The two bars shown in the figure are used to support a load P. When unloaded, joint B has coordinates (0, 0). After load P is applied, joint B moves to the coordinate position (0.35 in., -0.45 in.). Assume a = 9 ft, b=5 ft, and h = 7 ft. Determine the normal strain in each bar. Answers: EAB = EBC= i a B P b με με
